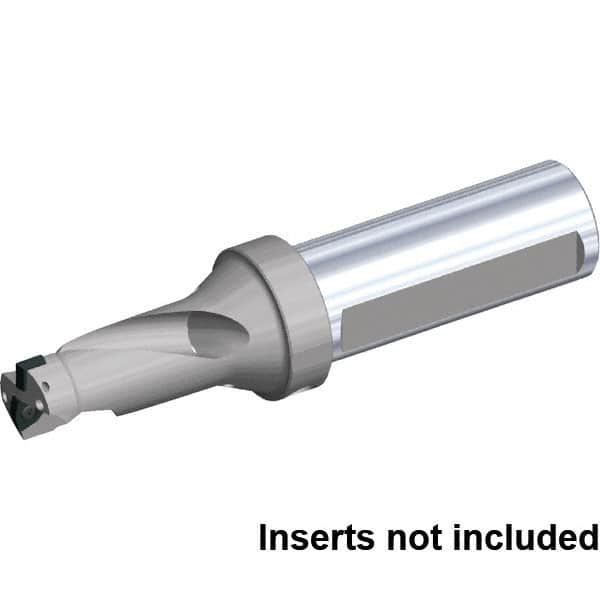

Kennametal - 1-3/4" Max Drill Depth, 2xD, 7/8" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Flange Shank
Item #: 36066025
Brand: Kennametal
Model #: 5689623
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 22.23 |
| Drill Diameter (Inch) | 7/8 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Inch) | 1-3/4 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 146.57 |
| Overall Length/Projection (Decimal Inch) | 5.7705 |
| Insert Compatibility (Outside or Peripheral) | SPGX0703.. |
| Insert Compatibility | DFT05T3.. |
| Flute Length (mm) | 48.00 |
| Flute Length (Decimal Inch) | 1.8900 |
| Body Length (Decimal Inch) | 2.7705 |
| Body Length (mm) | 70.37 |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
