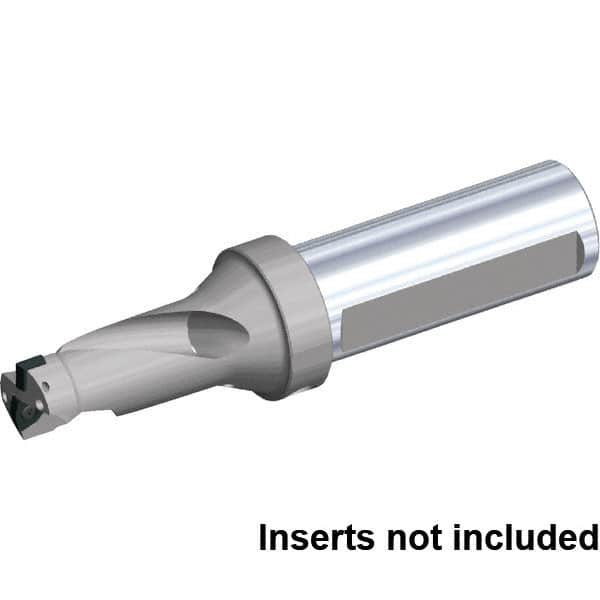

Kennametal - 1.468" Max Drill Depth, 2xD, 47/64" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Flange Shank
Item #: 36066074
Brand: Kennametal
Model #: 5689608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 18.64 |
| Drill Diameter (Inch) | 0.7344 |
| Drill Diameter (Decimal Inch) | 0.7344 |
| Maximum Drill Depth (mm) | 37.29 |
| Maximum Drill Depth (Decimal Inch) | 1.4680 |
| Maximum Drill Depth (Inch) | 1.468 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 112.17 |
| Overall Length/Projection (Decimal Inch) | 4.4161 |
| Insert Compatibility (Outside or Peripheral) | SPGX0603.. |
| Insert Compatibility | DFT0303.. |
| Flute Length (mm) | 39.00 |
| Flute Length (Decimal Inch) | 1.5350 |
| Body Length (Decimal Inch) | 2.4161 |
| Body Length (mm) | 61.37 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
