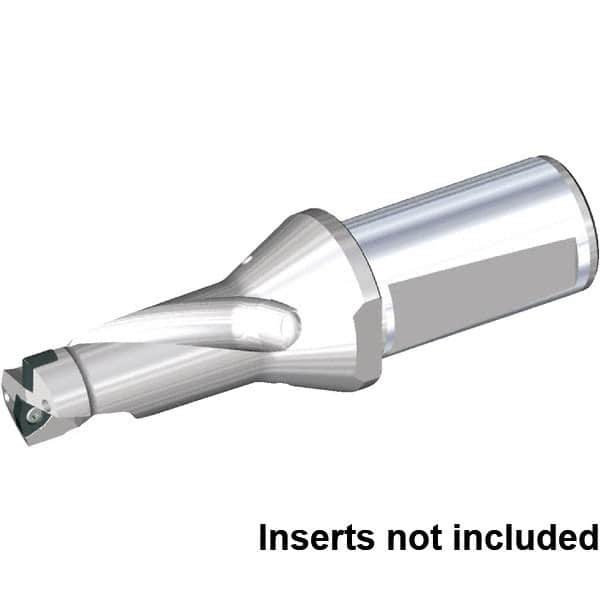

Kennametal - 1.654" Max Drill Depth, 2xD, 0.83" Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 36066173
Brand: Kennametal
Model #: 5689555
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 21.00 |
| Drill Diameter (Inch) | 0.8300 |
| Drill Diameter (Decimal Inch) | 0.8300 |
| Maximum Drill Depth (mm) | 42.00 |
| Maximum Drill Depth (Decimal Inch) | 1.6540 |
| Maximum Drill Depth (Inch) | 1.654 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2590 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 132.00 |
| Overall Length/Projection (Decimal Inch) | 5.1960 |
| Insert Compatibility (Outside or Peripheral) | SPGX0603.. |
| Insert Compatibility | DFT0303.. |
| Flute Length (mm) | 56.00 |
| Flute Length (Decimal Inch) | 2.2050 |
| Body Length (Decimal Inch) | 2.9130 |
| Body Length (mm) | 74.00 |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2830 |
