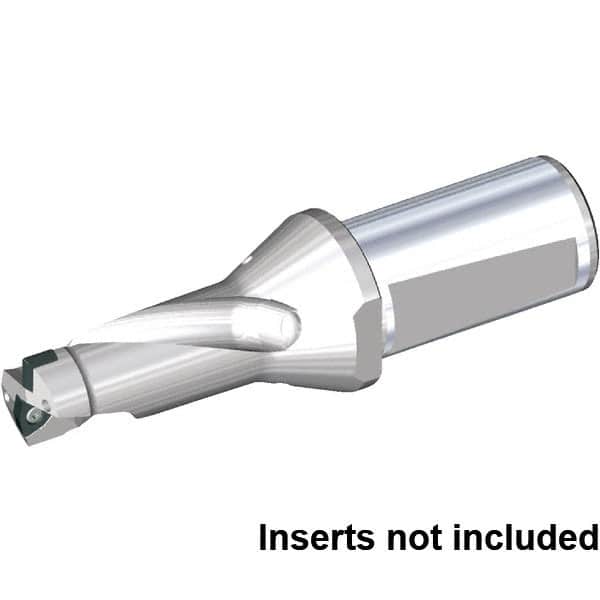

Kennametal - 1.535" Max Drill Depth, 2xD, 0.77" Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 36066199
Brand: Kennametal
Model #: 5689553
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 19.50 |
| Drill Diameter (Inch) | 0.7700 |
| Drill Diameter (Decimal Inch) | 0.7700 |
| Maximum Drill Depth (mm) | 39.00 |
| Maximum Drill Depth (Decimal Inch) | 1.5350 |
| Maximum Drill Depth (Inch) | 1.535 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2590 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 126.00 |
| Overall Length/Projection (Decimal Inch) | 4.9600 |
| Insert Compatibility (Outside or Peripheral) | SPGX0603.. |
| Insert Compatibility | DFT0303.. |
| Flute Length (mm) | 50.00 |
| Flute Length (Decimal Inch) | 1.9690 |
| Body Length (Decimal Inch) | 2.6770 |
| Body Length (mm) | 68.00 |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2830 |
