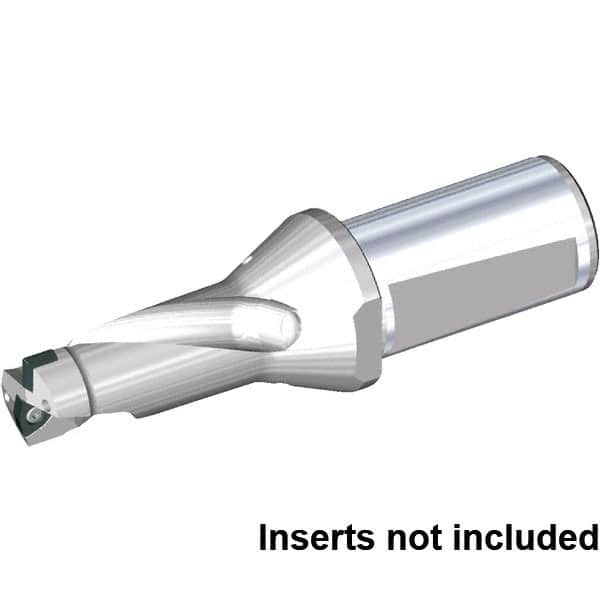

Kennametal - 1-5/12" Max Drill Depth, 2xD, 0.71" Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 36066223
Brand: Kennametal
Model #: 5689550
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 18.00 |
| Drill Diameter (Inch) | 0.7100 |
| Drill Diameter (Decimal Inch) | 0.7100 |
| Maximum Drill Depth (mm) | 36.00 |
| Maximum Drill Depth (Decimal Inch) | 1.4170 |
| Maximum Drill Depth (Inch) | 1.417 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 123.00 |
| Overall Length/Projection (Decimal Inch) | 4.8420 |
| Insert Compatibility (Outside or Peripheral) | SPGX0603.. |
| Insert Compatibility | DFT0303.. |
| Flute Length (mm) | 47.00 |
| Flute Length (Decimal Inch) | 1.8500 |
| Body Length (Decimal Inch) | 2.5590 |
| Body Length (mm) | 65.00 |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2830 |
