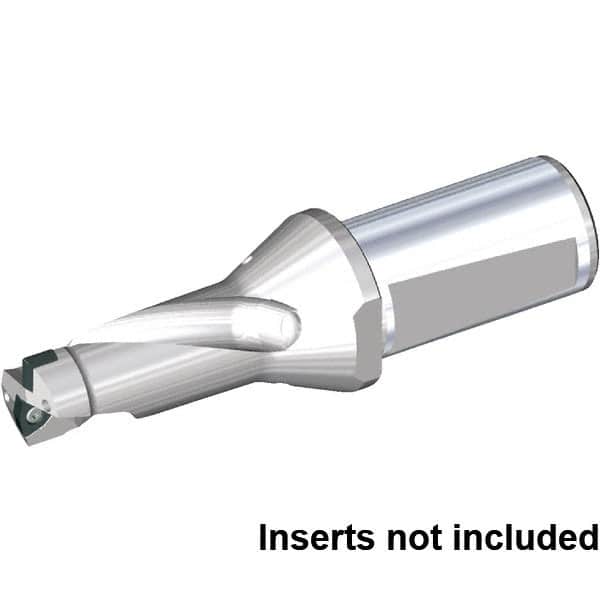

Kennametal - 1.22" Max Drill Depth, 2xD, 0.61" Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Whistle Notch Shank
Item #: 36066280
Brand: Kennametal
Model #: 5689543
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 15.50 |
| Drill Diameter (Inch) | 0.6100 |
| Drill Diameter (Decimal Inch) | 0.6100 |
| Maximum Drill Depth (mm) | 31.00 |
| Maximum Drill Depth (Decimal Inch) | 1.2200 |
| Maximum Drill Depth (Inch) | 1.220 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 1.5740 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 100.00 |
| Overall Length/Projection (Decimal Inch) | 3.9370 |
| Insert Compatibility (Outside or Peripheral) | SPGX0502.. |
| Insert Compatibility | DFTX202.. |
| Flute Length (mm) | 37.00 |
| Flute Length (Decimal Inch) | 1.4570 |
| Body Length (Decimal Inch) | 2.1650 |
| Body Length (mm) | 55.00 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7720 |
