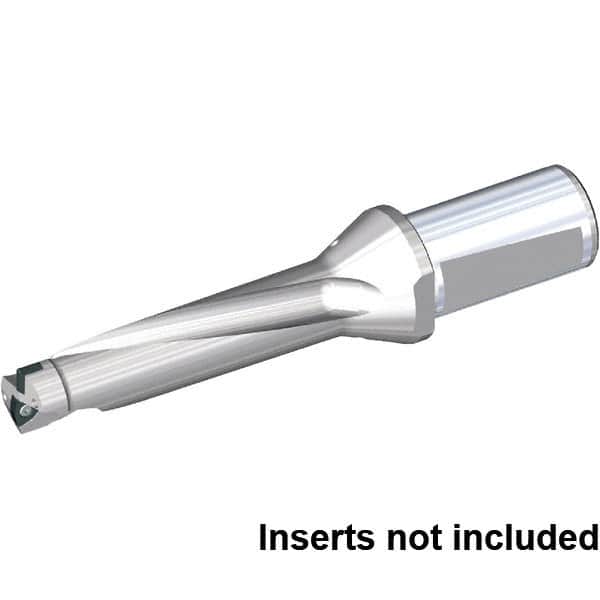

Kennametal - 3.15" Max Drill Depth, 4xD, 0.79" Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 36066330
Brand: Kennametal
Model #: 5689689
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 20.00 |
| Drill Diameter (Inch) | 0.7900 |
| Drill Diameter (Decimal Inch) | 0.7900 |
| Maximum Drill Depth (mm) | 80.00 |
| Maximum Drill Depth (Decimal Inch) | 3.1500 |
| Maximum Drill Depth (Inch) | 3.150 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2590 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 170.00 |
| Overall Length/Projection (Decimal Inch) | 6.6920 |
| Insert Compatibility (Outside or Peripheral) | SPGX0603.. |
| Insert Compatibility | DFT0303.. |
| Flute Length (mm) | 94.00 |
| Flute Length (Decimal Inch) | 3.7010 |
| Body Length (Decimal Inch) | 4.4090 |
| Body Length (mm) | 112.00 |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2830 |
