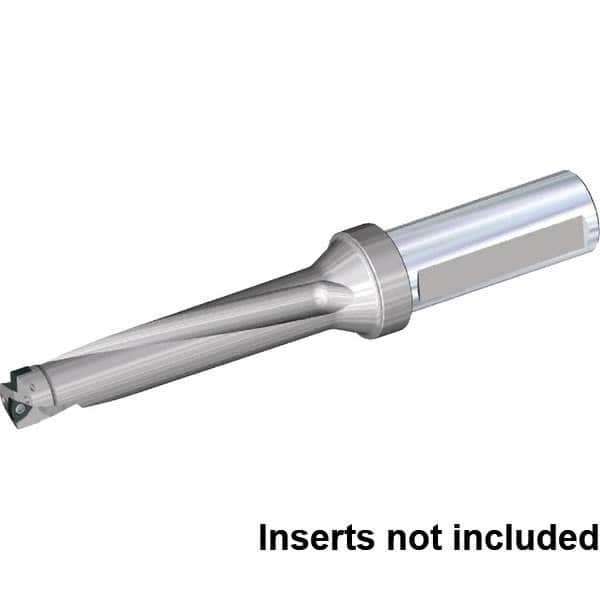

Kennametal - 4.22" Max Drill Depth, 5xD, 27/32" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Flange Shank
Item #: 36066801
Brand: Kennametal
Model #: 5689970
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 21.44 |
| Drill Diameter (Inch) | 0.8438 |
| Drill Diameter (Decimal Inch) | 0.8438 |
| Maximum Drill Depth (Decimal Inch) | 4.2200 |
| Maximum Drill Depth (Inch) | 4.220 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 208.82 |
| Overall Length/Projection (Decimal Inch) | 8.2213 |
| Insert Compatibility (Outside or Peripheral) | SPGX0603.. |
| Insert Compatibility | DFT0303.. |
| Flute Length (mm) | 110.00 |
| Flute Length (Decimal Inch) | 4.3307 |
| Body Length (Decimal Inch) | 5.2213 |
| Body Length (mm) | 132.62 |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
