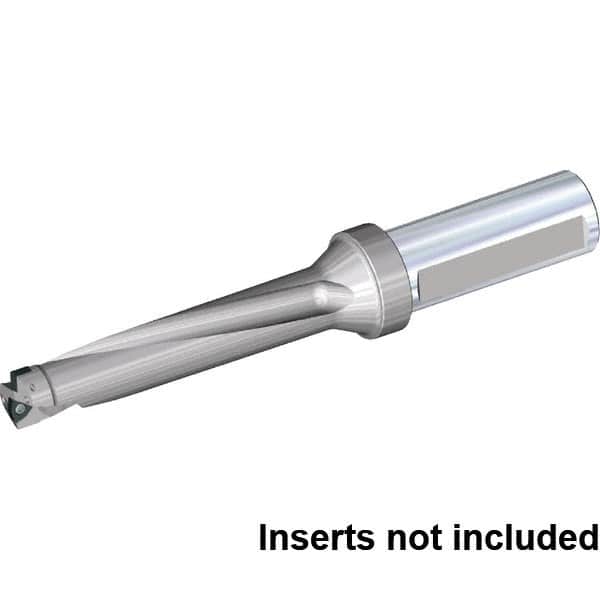

Kennametal - 7.815" Max Drill Depth, 5xD, 1-9/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Flange Shank
Item #: 36067031
Brand: Kennametal
Model #: 5692404
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 39.70 |
| Drill Diameter (Inch) | 1.5630 |
| Drill Diameter (Decimal Inch) | 1.5630 |
| Maximum Drill Depth (mm) | 198.50 |
| Maximum Drill Depth (Decimal Inch) | 7.8150 |
| Maximum Drill Depth (Inch) | 7.815 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 338.20 |
| Overall Length/Projection (Decimal Inch) | 13.3150 |
| Insert Compatibility (Outside or Peripheral) | SPPX1204.. |
| Insert Compatibility | DFT06T3.. |
| Flute Length (mm) | 220.00 |
| Flute Length (Decimal Inch) | 8.6614 |
| Body Length (Decimal Inch) | 9.5650 |
| Body Length (mm) | 242.95 |
| Shank Length (mm) | 95.25 |
| Shank Length (Decimal Inch) | 3.7500 |
