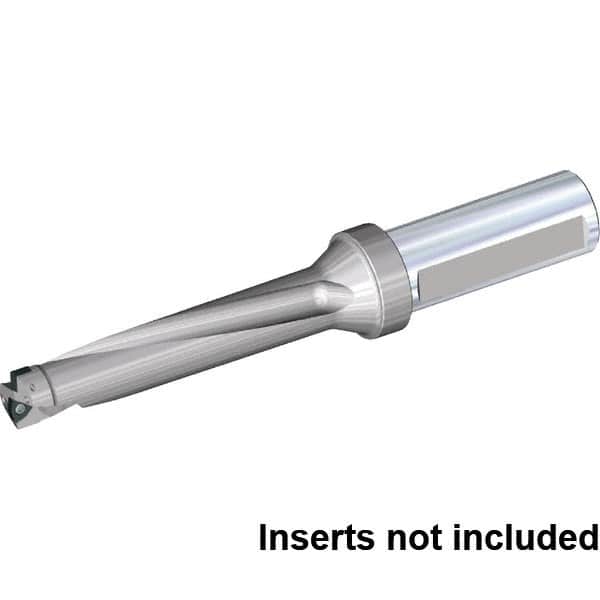

Kennametal - 7.19" Max Drill Depth, 5xD, 1-7/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Flange Shank
Item #: 36067064
Brand: Kennametal
Model #: 5692401
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 36.53 |
| Drill Diameter (Inch) | 1.4380 |
| Drill Diameter (Decimal Inch) | 1.4380 |
| Maximum Drill Depth (Decimal Inch) | 7.1900 |
| Maximum Drill Depth (Inch) | 7.190 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 309.63 |
| Overall Length/Projection (Decimal Inch) | 12.1902 |
| Insert Compatibility (Outside or Peripheral) | SPPX1204.. |
| Insert Compatibility | DFT06T3.. |
| Flute Length (mm) | 204.00 |
| Flute Length (Decimal Inch) | 8.0315 |
| Body Length (Decimal Inch) | 8.9402 |
| Body Length (mm) | 227.08 |
| Shank Length (mm) | 82.55 |
| Shank Length (Decimal Inch) | 3.2500 |
