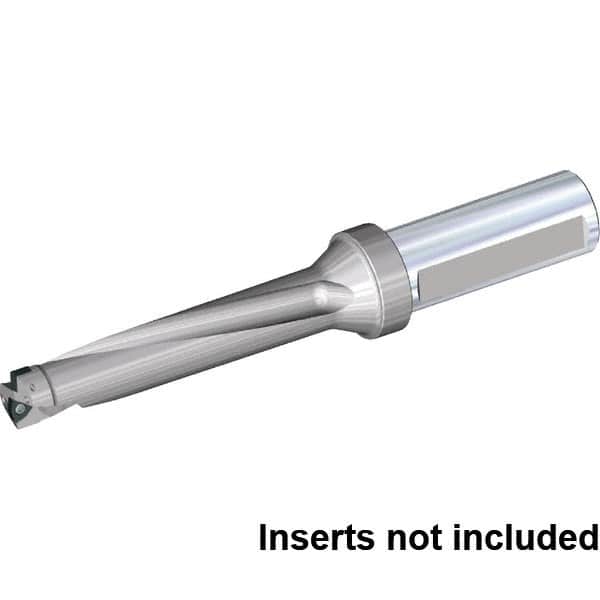

Kennametal - 5.94" Max Drill Depth, 5xD, 1-3/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Flange Shank
Item #: 36067148
Brand: Kennametal
Model #: 5692394
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 30.18 |
| Drill Diameter (Inch) | 1.1880 |
| Drill Diameter (Decimal Inch) | 1.1880 |
| Maximum Drill Depth (mm) | 150.88 |
| Maximum Drill Depth (Decimal Inch) | 5.9400 |
| Maximum Drill Depth (Inch) | 5.940 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 271.53 |
| Overall Length/Projection (Decimal Inch) | 10.6902 |
| Insert Compatibility (Outside or Peripheral) | SPPX09T3.. |
| Insert Compatibility | DFT05T3.. |
| Flute Length (mm) | 166.00 |
| Flute Length (Decimal Inch) | 6.5354 |
| Body Length (Decimal Inch) | 7.4402 |
| Body Length (mm) | 188.98 |
| Shank Length (mm) | 82.55 |
| Shank Length (Decimal Inch) | 3.2500 |
