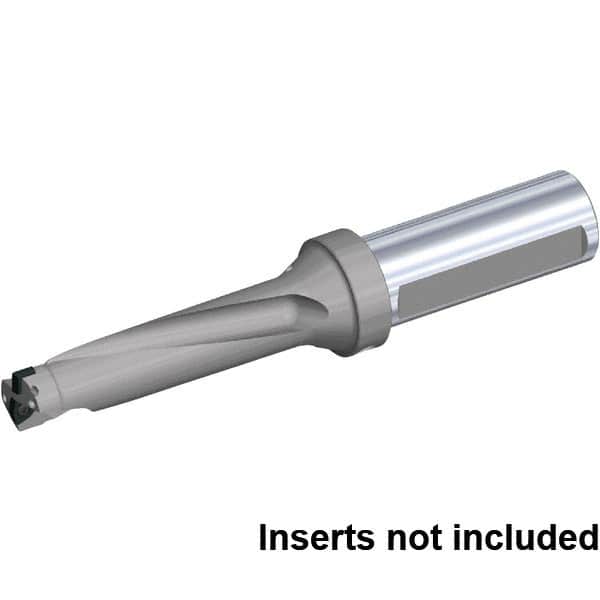

Kennametal - 8" Max Drill Depth, 4xD, 2" Diam, Indexable Insert Drill - 2 Inserts, 2" Shank Diam, Flange Shank
Item #: 36067288
Brand: Kennametal
Model #: 5692216
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 50.80 |
| Drill Diameter (Inch) | 2 |
| Drill Diameter (Decimal Inch) | 2.0000 |
| Maximum Drill Depth (mm) | 203.20 |
| Maximum Drill Depth (Decimal Inch) | 8.0000 |
| Maximum Drill Depth (Inch) | 8 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 355.60 |
| Overall Length/Projection (Decimal Inch) | 14.0000 |
| Insert Compatibility (Outside or Peripheral) | SPPX15T5.. |
| Insert Compatibility | DFT0905.. |
| Flute Length (mm) | 231.00 |
| Flute Length (Decimal Inch) | 9.0945 |
| Body Length (Decimal Inch) | 10.0000 |
| Body Length (mm) | 254.00 |
| Shank Length (mm) | 101.60 |
| Shank Length (Decimal Inch) | 4.0000 |
