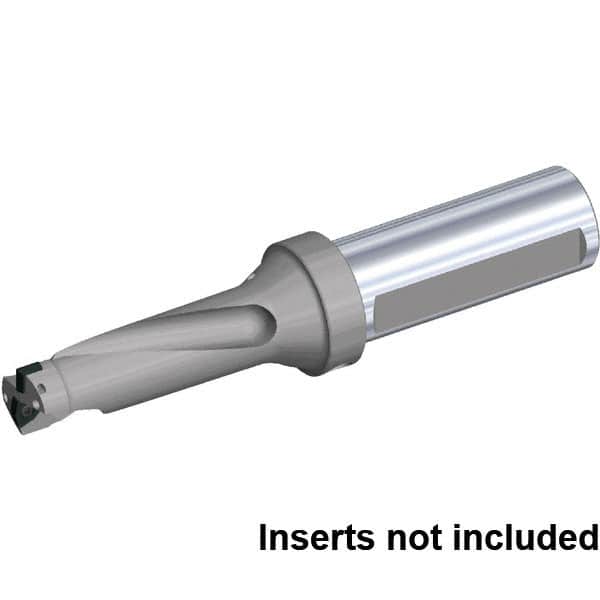

Kennametal - 6" Max Drill Depth, 3xD, 2" Diam, Indexable Insert Drill - 2 Inserts, 2" Shank Diam, Flange Shank
Item #: 36067601
Brand: Kennametal
Model #: 5691815
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 50.80 |
| Drill Diameter (Inch) | 2 |
| Drill Diameter (Decimal Inch) | 2.0000 |
| Maximum Drill Depth (mm) | 152.40 |
| Maximum Drill Depth (Decimal Inch) | 6.0000 |
| Maximum Drill Depth (Inch) | 6 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 304.80 |
| Overall Length/Projection (Decimal Inch) | 12.0000 |
| Insert Compatibility (Outside or Peripheral) | SPPX15T5.. |
| Insert Compatibility | DFT0905.. |
| Flute Length (mm) | 181.00 |
| Flute Length (Decimal Inch) | 7.1260 |
| Body Length (Decimal Inch) | 8.0000 |
| Body Length (mm) | 203.20 |
| Shank Length (mm) | 101.60 |
| Shank Length (Decimal Inch) | 4.0000 |
