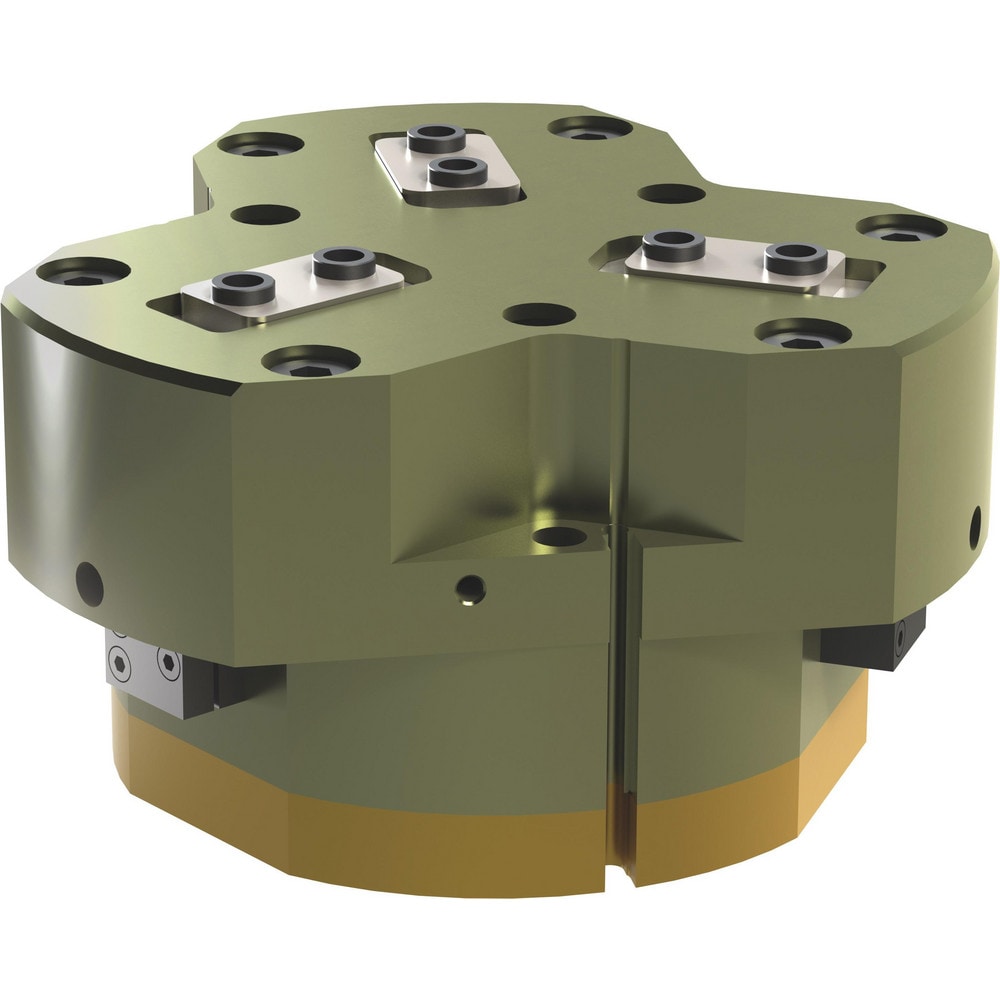

Air Grippers; Grip Type: 3-Jaw Parallel Gripper; Grip Style: Parallel; Holding Type: Internal, External; Operating Pressure (psi): 30 to 100; Action: Double; Maximum Working Pressure (bar): 7; Maximum Working Pressure (Psi
Item #: 67524264
Brand: De-Sta-Co
Model #: RTH-6M
Product Specifications
| Grip Type | 3-Jaw Parallel Gripper |
| Grip Style | Parallel |
| Holding Type | Internal; External |
| Operating Pressure (psi) | 30 to 100 |
| Action | Double |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (Psi - 3 Decimals) | 100.000 |
| Port Size | G1/8 |
| External Holding Force | 2294.00 |
| Open Width (Decimal Inch) | 6.574 |
| Minimum Working Temperature (Deg F) | -30 |
| Minimum Working Temperature (Deg C) | -35 |
| Maximum Working Temperature (F) | 180.000 |
| Maximum Operating Frequency | 254 cpm |
| Overall Length (mm) | 110.0000 |
| Maximum Working Temprature (Deg C) | 80 |
| Closing Stroke (Decimal Inch) | 0.63 |
| UNSPSC Code | 31251504 |
| Grip Type | 3-Jaw Parallel Gripper |
| Grip Style | Parallel |
| Holding Type | Internal; External |
| Operating Pressure (psi) | 30 to 100 |
| Action | Double |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (Psi - 3 Decimals) | 100.000 |
| Port Size | G1/8 |
| External Holding Force | 2294.00 |
| Open Width (Decimal Inch) | 6.574 |
| Minimum Working Temperature (Deg F) | -30 |
| Minimum Working Temperature (Deg C) | -35 |
| Maximum Working Temperature (F) | 180.000 |
| Maximum Operating Frequency | 254 cpm |
| Overall Length (mm) | 110.0000 |
| Maximum Working Temprature (Deg C) | 80 |
| Closing Stroke (Decimal Inch) | 0.63 |
| UNSPSC Code | 31251504 |
| MSC Part # | 67524264 |
| Mfr Part # | RTH-6M |
| Country of Origin Country of Origin is subject to change | France |
