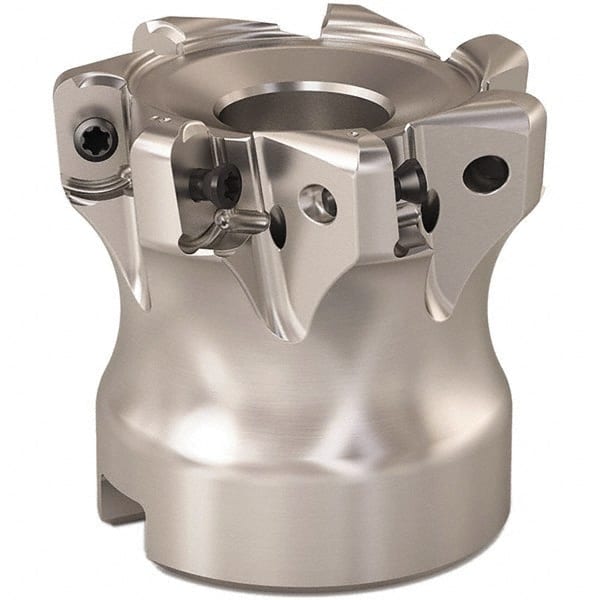

Seco - 1.653" Cut Diam, 0.9mm Max Depth, 0.629" Arbor Hole, 7 Inserts, LOHT06 Insert Style, Indexable Copy Face Mill - R220.21 Cutter Style, 1.574 High, Through Coolant, Series R220
Item #: 36175032
Brand: Seco
Model #: 82276
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 42.00 |
| Cutting Diameter (Inch) | 1.6530 |
| Cutting Diameter (Decimal Inch) | 1.6535 |
| Maximum Depth of Cut (mm) | 0.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.0354 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Inch) | 0.6290 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (mm) | 40.00 |
| Overall Height (Inch) | 1.5740 |
| Overall Height (Decimal Inch) | 1.5748 |
| Series | R220 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | LOHT06 |
| Cutter Style | R220.21 |
| Through Coolant | Yes |
