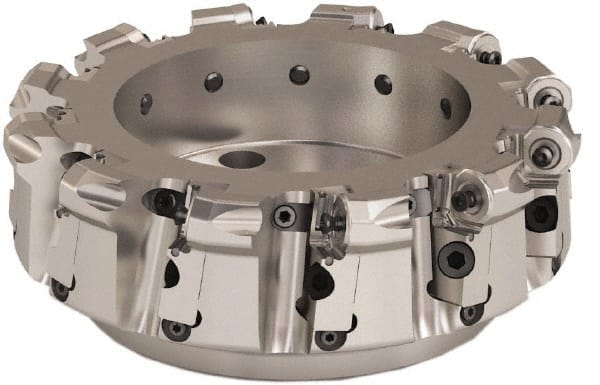

Seco - 8" Cut Diam, 6mm Max Depth, 2-1/2" Arbor Hole, 12 Inserts, ONMU09 Insert Style, Indexable Copy Face Mill - L220.48 Cutter Style, 3.1496 High, Series Doubleoctomill
Item #: 36175701
Brand: Seco
Model #: 84805
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 8 |
| Cutting Diameter (Decimal Inch) | 8.0000 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Overall Height (mm) | 80.00 |
| Overall Height (Inch) | 3.1496 |
| Overall Height (Decimal Inch) | 3.1496 |
| Series | Doubleoctomill |
| Number of Cutter Inserts | 12 |
| Insert Compatibility | ONMU09 |
| Cutter Style | L220.48 |
| Insert Holding Method | Screw |
