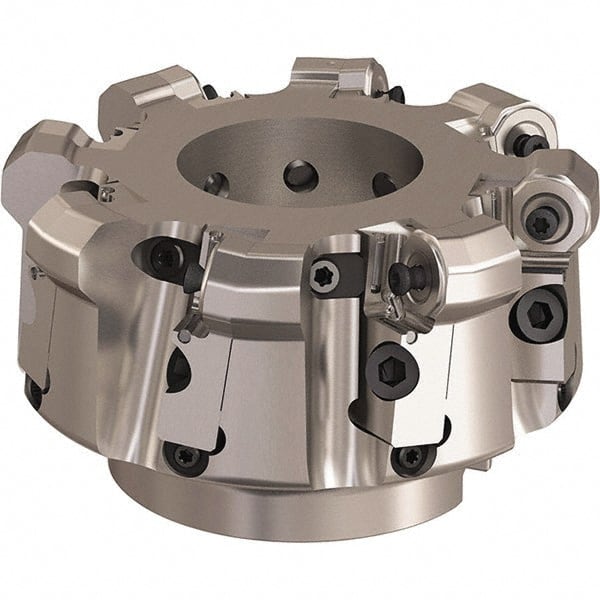

Seco - 125mm Cut Diam, 6mm Max Depth, 1.5748" Arbor Hole, 8 Inserts, ONMU09 Insert Style, Indexable Copy Face Mill - L220.48 Cutter Style, 2.4803 High, Series Doubleoctomill
Item #: 36175735
Brand: Seco
Model #: 84756
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Inch) | 1.5748 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 63.00 |
| Overall Height (Inch) | 2.4803 |
| Overall Height (Decimal Inch) | 2.4803 |
| Series | Doubleoctomill |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | ONMU09 |
| Cutter Style | L220.48 |
| Insert Holding Method | Screw |
