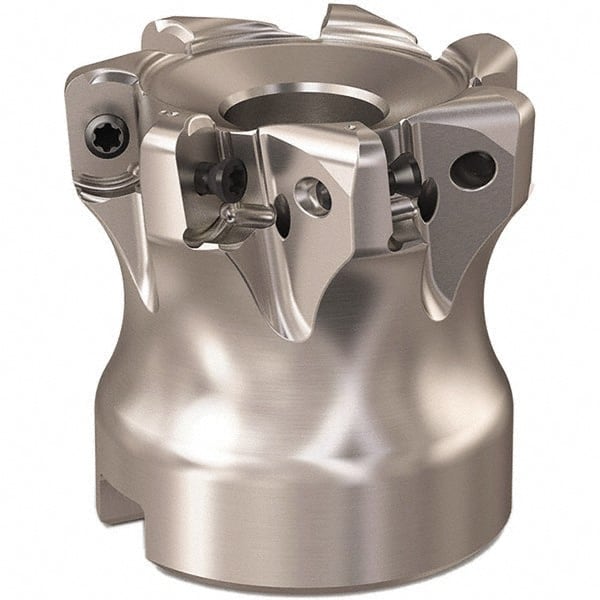

Seco - 40mm Cut Diam, 0.9mm Max Depth, 0.8661" Arbor Hole, 7 Inserts, LOHT06 Insert Style, Indexable Copy Face Mill - R220.21 Cutter Style, 1.5748 High, Series Doubleoctomill
Item #: 36175867
Brand: Seco
Model #: 01332
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 0.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.0354 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Inch) | 0.8661 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 40.00 |
| Overall Height (Inch) | 1.5748 |
| Overall Height (Decimal Inch) | 1.5748 |
| Series | Doubleoctomill |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | LOHT06 |
| Cutter Style | R220.21 |
| Insert Holding Method | Screw |
