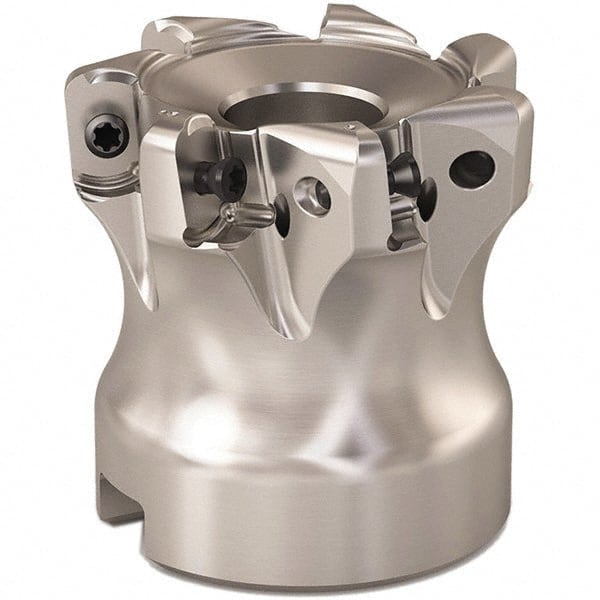

Seco - 35mm Cut Diam, 0.9mm Max Depth, 0.6299" Arbor Hole, 6 Inserts, LOHT06 Insert Style, Indexable Copy Face Mill - R220.21 Cutter Style, 1.378 High, Series Doubleoctomill
Item #: 36175875
Brand: Seco
Model #: 14040
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 35.00 |
| Maximum Depth of Cut (mm) | 0.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.0354 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Inch) | 0.6299 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (mm) | 35.00 |
| Overall Height (Inch) | 1.3780 |
| Overall Height (Decimal Inch) | 1.3780 |
| Series | Doubleoctomill |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | LOHT06 |
| Cutter Style | R220.21 |
| Insert Holding Method | Screw |
