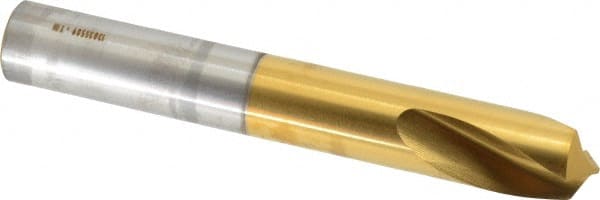

Guhring - 5/8" Body Diam, 120°, 115mm OAL, High Speed Steel Spotting Drill
Item #: 85787406
Brand: Guhring
Model #: 9005670158700
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Body Diameter (Inch) | 5/8 |
| Body Diameter (Decimal Inch) | 0.6250 |
| Drill Point Angle | 120 |
| Spotting Drill Material | High Speed Steel |
| Spotting Drill Finish/Coating | TiN |
| Overall Length (mm) | 115.00 |
| Flute Length (mm) | 37.50 |
| Shank Diameter (Inch) | 5/8 |
| Length Designation | Short |
| Cutting Direction | Right Hand |
| Tool Application | Spotting |
| Insertable Cutter Head | No |
| Tapered | No |
| Series/List | 567 |
