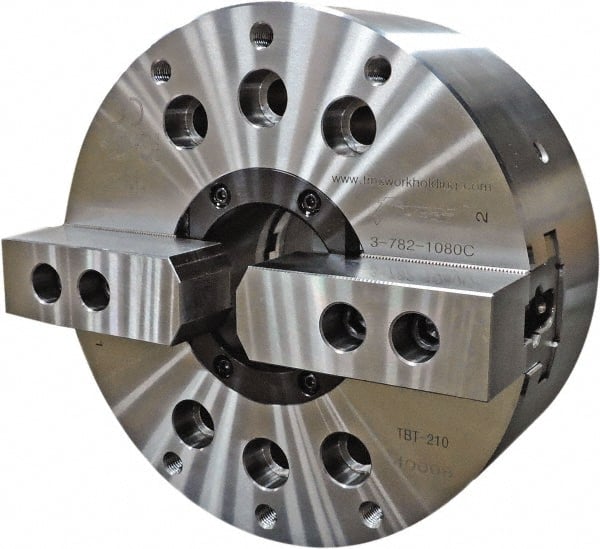

TMX - 2 Jaws, 12" Chuck Diam, Plain Back Mount, 3.5827" Through Hole, Drawtube, Hydraulic Power Lathe Chuck - 1.3386" to 11.9685" Jaw Capacity, 3,300 RPM
Item #: 36306769
Brand: TMX
Model #: 3-782-1200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (Inch) | 12 |
| Chuck Diameter (Decimal Inch) | 12.0000 |
| Number of Jaws | 2 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 3.5827 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Minimum Jaw Capacity (Decimal Inch) | 1.3386 |
| Maximum Jaw Capacity (Decimal Inch) | 11.9685 |
| Jaw Stroke Diameter (Decimal Inch) | 0.4016 |
| Maximum Static Gripping Force (lbf) | 22488.00 |
| Moment of Inertia (lb/sq ft) | 0.55 |
| Maximum RPM | 3300 |
