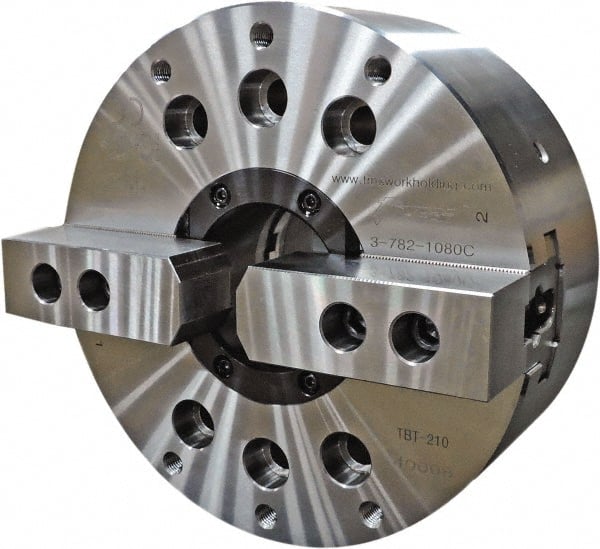

TMX - 2 Jaws, 10" Chuck Diam, Plain Back Mount, 3.0315" Through Hole, Drawtube, Hydraulic Power Lathe Chuck - 1.2205" to 10" Jaw Capacity, 4,200 RPM
Item #: 36306777
Brand: TMX
Model #: 3-782-1000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (Inch) | 10 |
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Number of Jaws | 2 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 3.0315 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Minimum Jaw Capacity (Decimal Inch) | 1.2205 |
| Maximum Jaw Capacity (Decimal Inch) | 10.0000 |
| Jaw Stroke Diameter (Decimal Inch) | 0.3346 |
| Maximum Static Gripping Force (lbf) | 18725.00 |
| Moment of Inertia (lb/sq ft) | 0.27 |
| Maximum RPM | 4200 |
