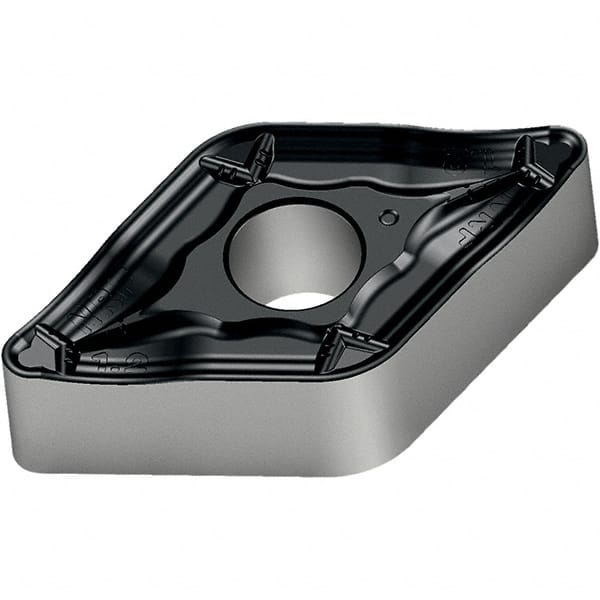

Walter - DNMM442 NRF Grade WPP30S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Diamond, 1/2" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 36325132
Brand: Walter
Model #: 6154351
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMM |
| Insert Size | 442 |
| Material | Carbide |
| Length (mm) | 15.01 |
| Length (Decimal Inch) | 0.5910 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | WPP30S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P30 |
| Chip Breaker | NRF |
| ISO Number | DNMM150608-NRF |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMM442-NRF |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | None |
| Included Angle | 55 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
