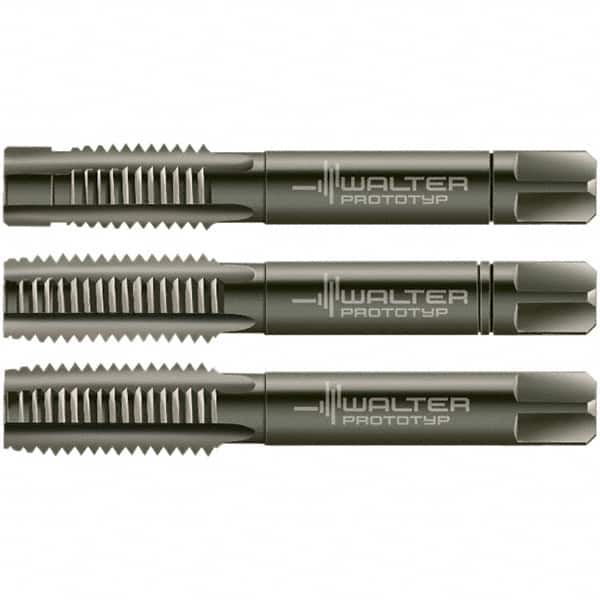

Walter-Prototyp - M8x1.25 Metric, 4 Flute, Modified Bottoming & Plug, Nitride/Oxide Finish, Cobalt Tap Set - Right Hand Cut, 63mm OAL, 3/4" Thread Length, 6HX Class of Fit, Series 30016
Item #: 36341253
Brand: Walter-Prototyp
Model #: 5200419
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Nitride is a thin, hard-shell coating that supports surface hardness of the tool. It is commonly used where abrasive or wearing conditions exist.
| Product Specifications | |
|---|---|
| Thread Size | M8x1.25 |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming; Plug |
| Material | Cobalt |
| Finish/Coating | Nitride/Oxide |
| Thread Direction | Right Hand |
| Class of Fit | 6HX |
| Thread Length (Decimal Inch) | 0.7480 |
| Overall Length (Decimal Inch) | 2.4803 |
| Overall Length (mm) | 63.00 |
| Thread Standard | Metric |
| Series/List | 30016 |
| Number of Pieces | 3 |
