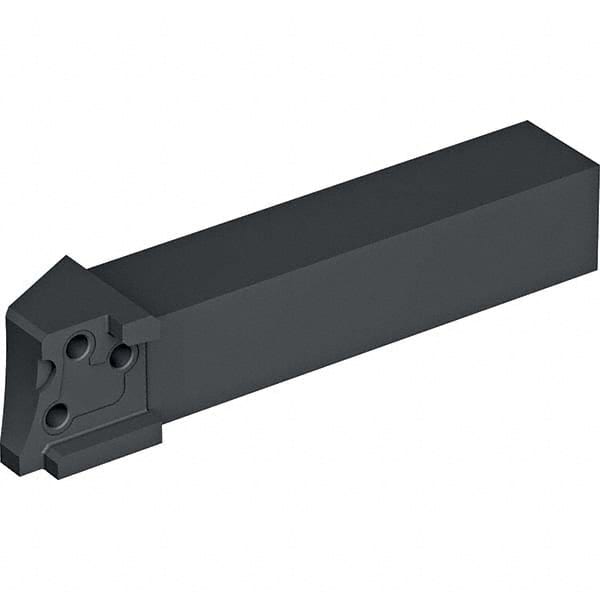

Walter - 1.772" Max Depth, 0.024" to 0.256" Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 36345288
Brand: Walter
Model #: 5028839
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.7720 |
| Minimum Groove Width (Decimal Inch) | 0.0240 |
| Maximum Groove Width (Decimal Inch) | 0.2560 |
| Overall Length (Decimal Inch) | 8.3500 |
| Toolholder Style | MSS-E |
| Insert Compatibility | FX3.1..; FX4.1..; FX5.1..; FX6.5..; GX16-2..; GX16-3..; GX24-3..; GX24-4.. |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Self Clamp |
| Full Radius Insert | Yes |
| Minimum Hole Diameter (Decimal Inch) | 2.7560 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2360 |
| Complete Insert Compatibility | FX3.1-E310N015-CE4; FX3.1-E310N015-CK8; FX3.1-E310N020-CE6; FX3.1-E310N040-CD3; FX3.1-E310N040-CE6; FX3.1-E310R/L5-CE6; FX3.1-E310R/L6-CE4; FX4.1-E410N015-CK8; FX4.1-E410N020-CD3; FX4.1-E410N020-CE4; FX4.1-E410N020-CE6; FX4.1-E410N050-CD3; FX4.1-E410N050- |
