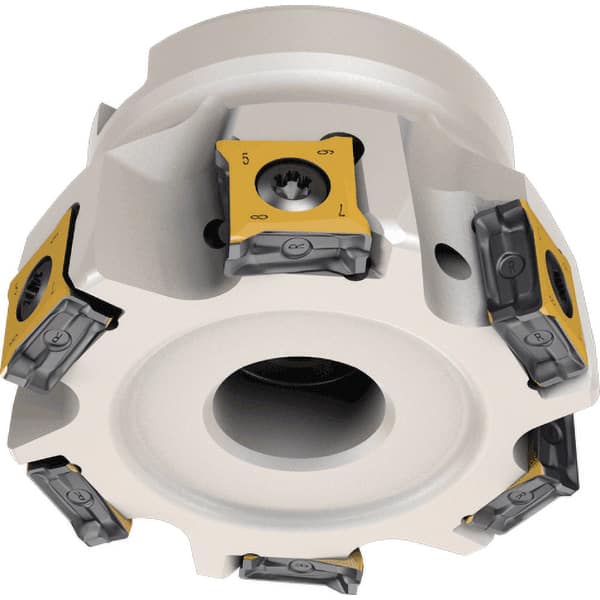

Iscar - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 127.00 Cutting Diameter (Decimal Inch): 5.0000
Item #: 15110026
Brand: Iscar
Model #: 3332806
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 127.00 ; Cutting Diameter (Decimal Inch): 5.0000 ; Arbor Hole Diameter (Inch): 1.5 ; Arbor Hole Diameter (Decimal Inch): 1.5000 ; Lead Angle: 90 ; Overall Height (Inch): 2
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Inch) | 1.5 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 90 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | T890 LN.T |
| Series | T890HT |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| Number of Flutes | 15 |
| Hub Diameter (mm) | 96.520 |
| Hub Diameter (Decimal Inch) | 3.8000 |
