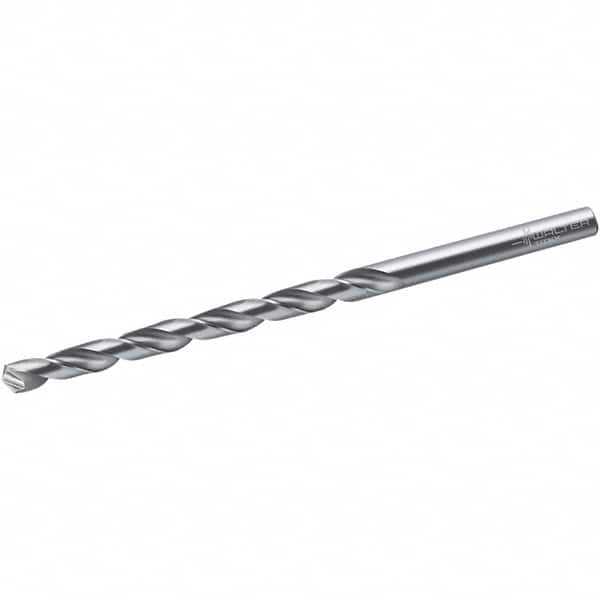

Walter-Titex - 7.3mm 130° Spiral Flute Cobalt Taper Length Drill Bit
Item #: 36355683
Brand: Walter-Titex
Model #: 5062123
Product Specifications
| Drill Bit Size (mm) | 7.30 |
| Drill Bit Size (Decimal Inch) | 0.2874 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Conical+C |
| Flute Length (Decimal Inch) | 4.0158 |
| Flute Length (mm) | 102.00 |
| Overall Length (mm) | 156.00 |
| Overall Length (Decimal Inch) | 6.1417 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 7.30 |
| Shank Diameter (Decimal Inch) | 0.2874 |
| Flute Length x Diameter Ratio | 12xD |
| Maximum Drilling Depth (mm) | 90.00 |
| Maximum Drilling Depth (Decimal Inch) | 3.5433 |
| Shank Length (mm) | 54 |
| Shank Length (Decimal Inch) | 2.1260 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 340 |
| Material Grade | M35 |
| Series/List | A1544 |
