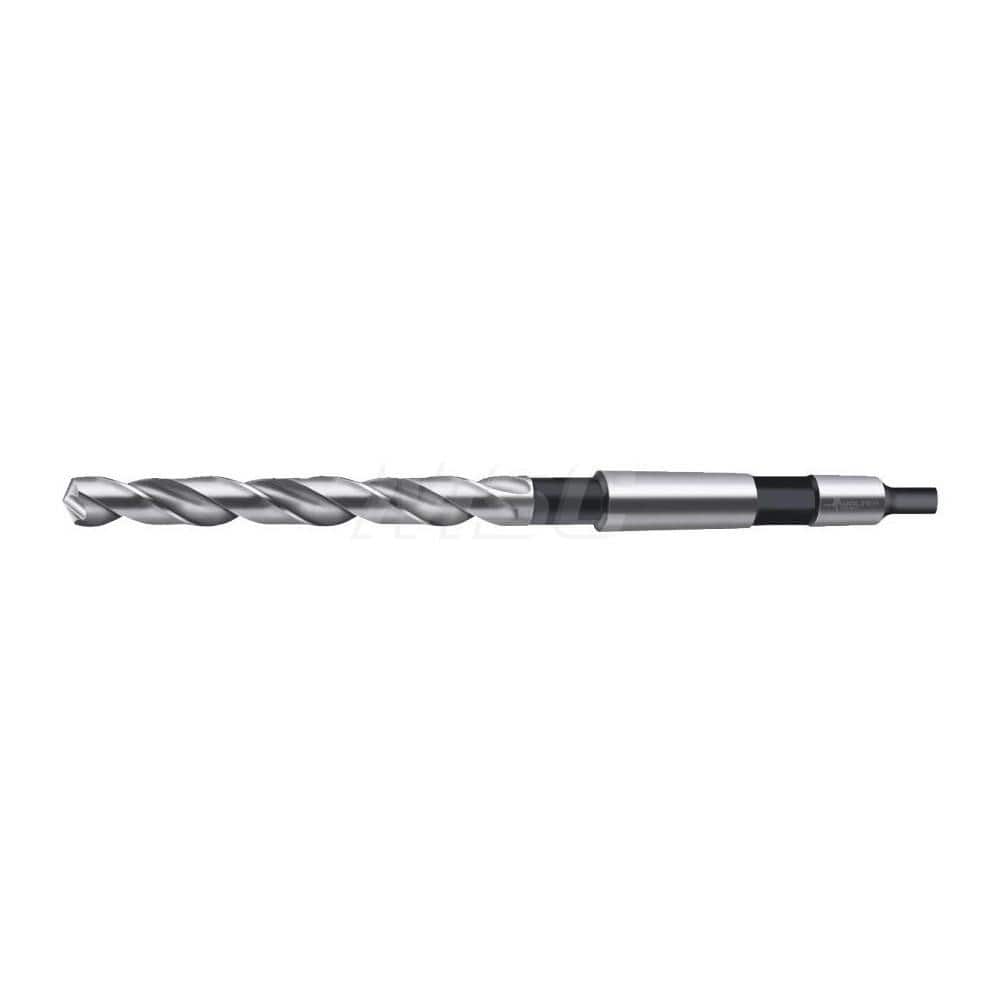

Taper Shank Drill Bit: 1.1417″ Dia, 3MT, 130 °, High Speed Steel Bright/Uncoated, 6.8898″ Flute Length, 11.6535″ OAL, Form V+A Point, Spiral Flute
Item #: 36366490
Brand: Walter-Titex
Model #: 5065888
Product Specifications
| Drill Bit Size (mm) | 29.00 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 3MT |
| Overall Length (mm) | 296.00 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Spiral |
| Drill Point Angle | 130 |
| Coolant Through | No |
| Point Type | Form V+A |
| Flute Length (mm) | 175.00 |
| Drill Bit Size (Decimal Inch) | 1.1417 |
| Flute Length (Decimal Inch) | 6.8898 |
| Spiral Type | Regular |
| Maximum Drilling Depth (Decimal Inch) | 5.7100 |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 11.6535 |
| Series | A4244 |
| Standards | DIN 345 |
| Tool Application | Through Hole Drilling; Blind Hole; Stack Drilling |
| Web Thinning | Web-Thinned |
| Flute Length x Diamter Ratio | 8xD |
| Drill Bit Diameter Tolerance | h8 |
