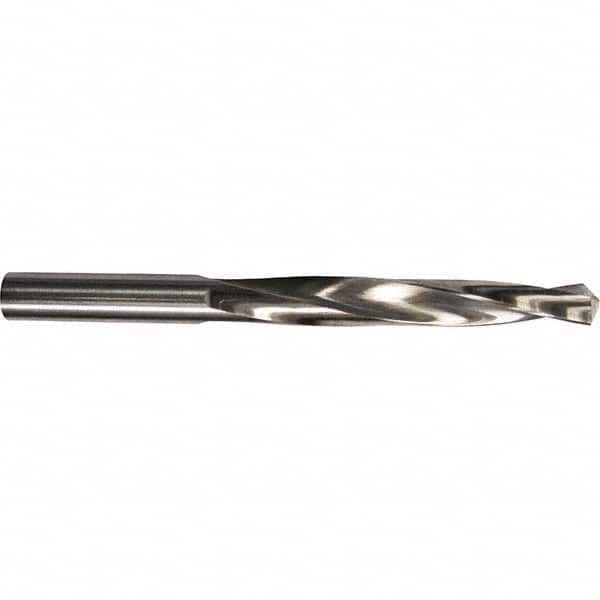

Guhring - 4.45mm 118° High Speed Steel Jobber Drill
Item #: 87198412
Brand: Guhring
Model #: 9002060044500
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 4.45 |
| Drill Bit Size (Decimal Inch) | 0.1752 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 47.00 |
| Flute Length (Decimal Inch) | 1.8504 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Standard |
| Shank Diameter (mm) | 4.45 |
| Shank Diameter (Decimal Inch) | 0.1752 |
| Maximum Drilling Depth (Decimal Inch) | 1.8504 |
| Maximum Drilling Depth (mm) | 47.00 |
| Spiral Type | Slow Spiral |
| Shank Length (mm) | 33.00 |
| Shank Length (Decimal Inch) | 1.2992 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.018 |
| Number of Flutes | 2 |
| Specification Number | DIN 338 |
| Drill Bit Grade | General Purpose |
| Material Grade | M2 |
| Series/List | 206 |
