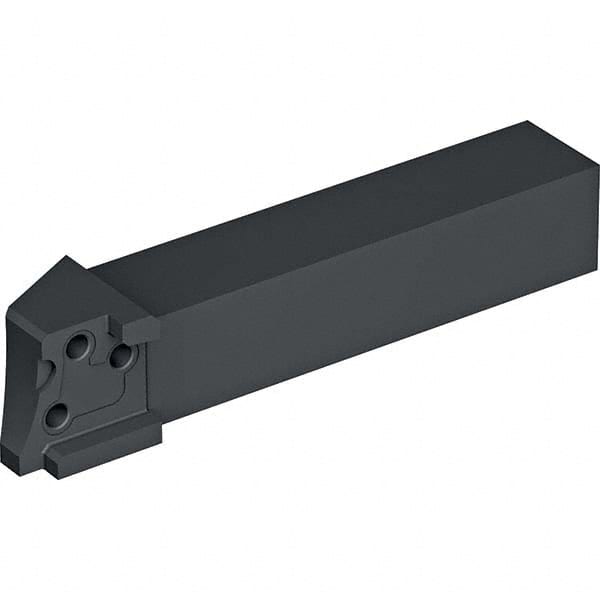

Walter - 21mm Max Depth, 0.6mm to 5mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 36376259
Brand: Walter
Model #: 5009178
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 21.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8268 |
| Minimum Groove Width (Decimal Inch) | 0.0236 |
| Minimum Groove Width (mm) | 0.60 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (Decimal Inch) | 5.1969 |
| Overall Length (mm) | 132.00 |
| Toolholder Style | MSS-E |
| Insert Compatibility | FX2.2..; FX3.1..; FX4.1..; GX16-1..; GX16-2..; GX16-3..; GX24-2.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Self Clamp |
| Full Radius Insert | Yes |
| Complete Insert Compatibility | FX2.2-E220N010-CE4; FX2.2-E220N010-CK8; FX2.2-E220N015-CE6; FX2.2-E220R/L4-CE4; FX2.2-E220R/L5-CE6; FX3.1-E310N015-CE4; FX3.1-E310N015-CK8; FX3.1-E310N020-CE6; FX3.1-E310N040-CD3; FX3.1-E310N040-CE6; FX3.1-E310R/L5-CE6; FX3.1-E310R/L6-CE4; FX4.1-E410N015- |
