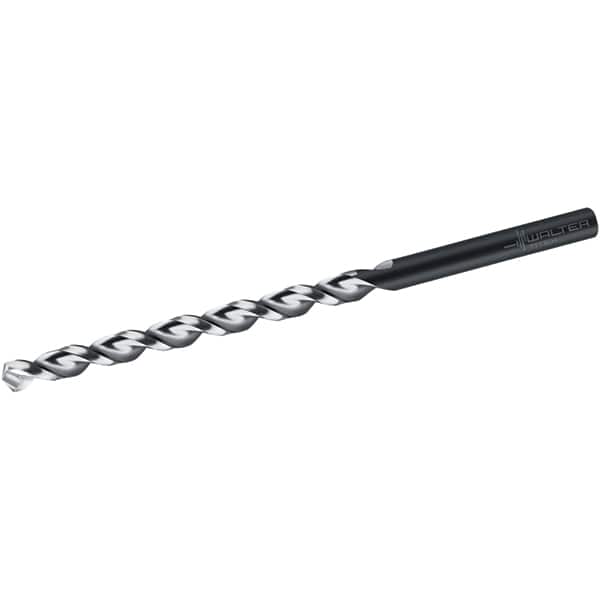

Walter-Titex - 8.4mm 130° Parabolic Flute High Speed Steel Taper Length Drill Bit
Item #: 36384808
Brand: Walter-Titex
Model #: 5061945
Product Specifications
| Drill Bit Size (mm) | 8.40 |
| Drill Bit Size (Decimal Inch) | 0.3307 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Oxide |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Conical+U |
| Flute Length (Decimal Inch) | 4.2913 |
| Flute Length (mm) | 109.00 |
| Overall Length (mm) | 165.00 |
| Overall Length (Decimal Inch) | 6.4961 |
| Shank Diameter (mm) | 8.40 |
| Shank Diameter (Decimal Inch) | 0.3307 |
| Flute Length x Diameter Ratio | 12xD |
| Maximum Drilling Depth (mm) | 96.00 |
| Maximum Drilling Depth (Decimal Inch) | 3.7795 |
| Shank Length (mm) | 56 |
| Shank Length (Decimal Inch) | 2.2047 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 340 |
| Material Grade | M2 |
| Series/List | A1522 |
