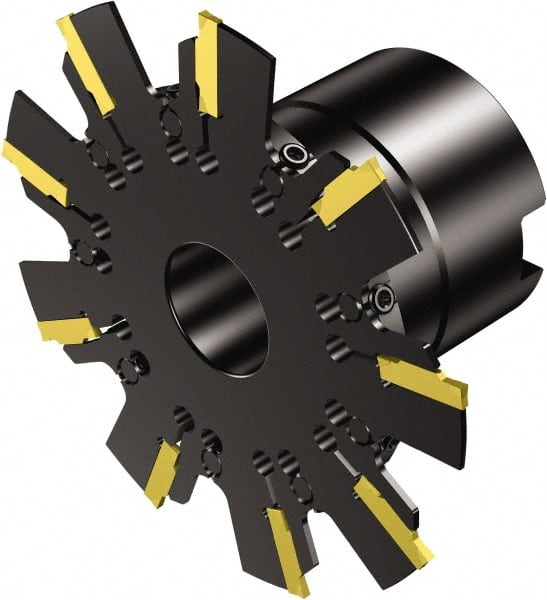

Sandvik Coromant - Shell Mount Connection, 0.0787" Cutting Width, 0.5906" Depth of Cut, 100mm Cutter Diam, 0.8661" Hole Diam, Indexable Slotting Cutter - 0.8661" Shank Diam, 329..Qxx Toolholder, Right Hand Cutting Direction
Item #: 36415123
Brand: Sandvik Coromant
Model #: 5758877
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (Decimal Inch) | 0.07874 |
| Cutting Width (mm) | 2 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (Decimal Inch) | 0.590551 |
| Maximum Depth of Cut (mm) | 15 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Shank Diameter (mm) | 22.00 |
| Shank Diameter (Inch) | 0.866142 |
| Modular Connection Size | 22 |
| Toolholder Style | 329..Qxx |
| Series | CoroMill 329 |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 4700 |
| Maximum RPM | 4700 |
| Hub Diameter (mm) | 43.00 |
| Hub Diameter (Decimal Inch) | 1.6929 |
| Hub Diameter (mm) | 43.00 |
| Hub Diameter (Decimal Inch) | 1.6929 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N123E2-0200- |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
