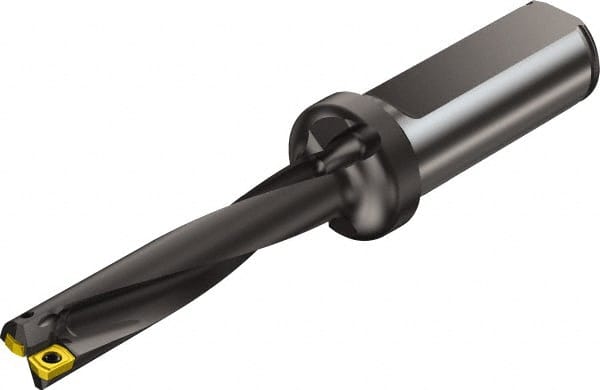

Sandvik Coromant - 88.4mm Max Drill Depth, 5xD, 17mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Straight Shank
Item #: 36434496
Brand: Sandvik Coromant
Model #: 5765281
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..L-05 |
| Drill Diameter (mm) | 17.00 |
| Drill Diameter (Decimal Inch) | 0.6690 |
| Maximum Drill Depth (mm) | 88.40 |
| Maximum Drill Depth (Decimal Inch) | 3.4803 |
| Shank Type | Straight |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 2.6 |
| Insert Size (Decimal Inch) | 0.1024 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7165 |
| Maximum Drill Diameter (mm) | 17.00 |
| Overall Length/Projection (mm) | 153.00 |
| Overall Length/Projection (Decimal Inch) | 6.0236 |
| Insert Compatibility (Outside or Peripheral) | 03P |
| Flute Length (mm) | 97.80 |
| Flute Length (Decimal Inch) | 3.8504 |
| Body Length (Decimal Inch) | 3.4646 |
| Body Length (mm) | 88.00 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Radius (Decimal Inch) | 0.3346 |
| Series | CoroDrill 880 |
