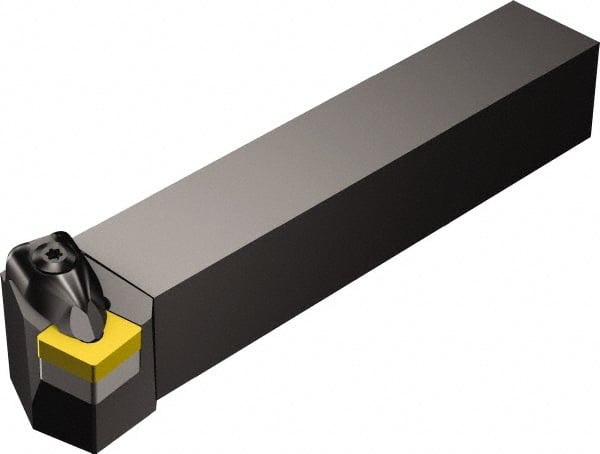

Sandvik Coromant - DCKNR/L, Left Hand Cut, 15° Lead Angle, 19.05mm Shank Height x 19.05mm Shank Width, Negative Rake Indexable Turning Toolholder - 117.39mm OAL, CNMG 12 04 08, CNMG 432 Insert Compatibility, Series T-Max P
Item #: 36435782
Brand: Sandvik Coromant
Model #: 5730484
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DCKNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 15 |
| Shank Width (mm) | 19.05 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 117.39 |
| Overall Length (Decimal Inch) | 4.6216 |
| Insert Compatibility | CNMG 12 04 08; CNMG 432 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 114.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5000 |
| Center to Cutting Edge (Decimal Inch) | 0.8550 |
| Head Length (mm) | 19.00 |
| Head Length (Decimal Inch) | 0.7480 |
| Toolholder Material | Steel |
