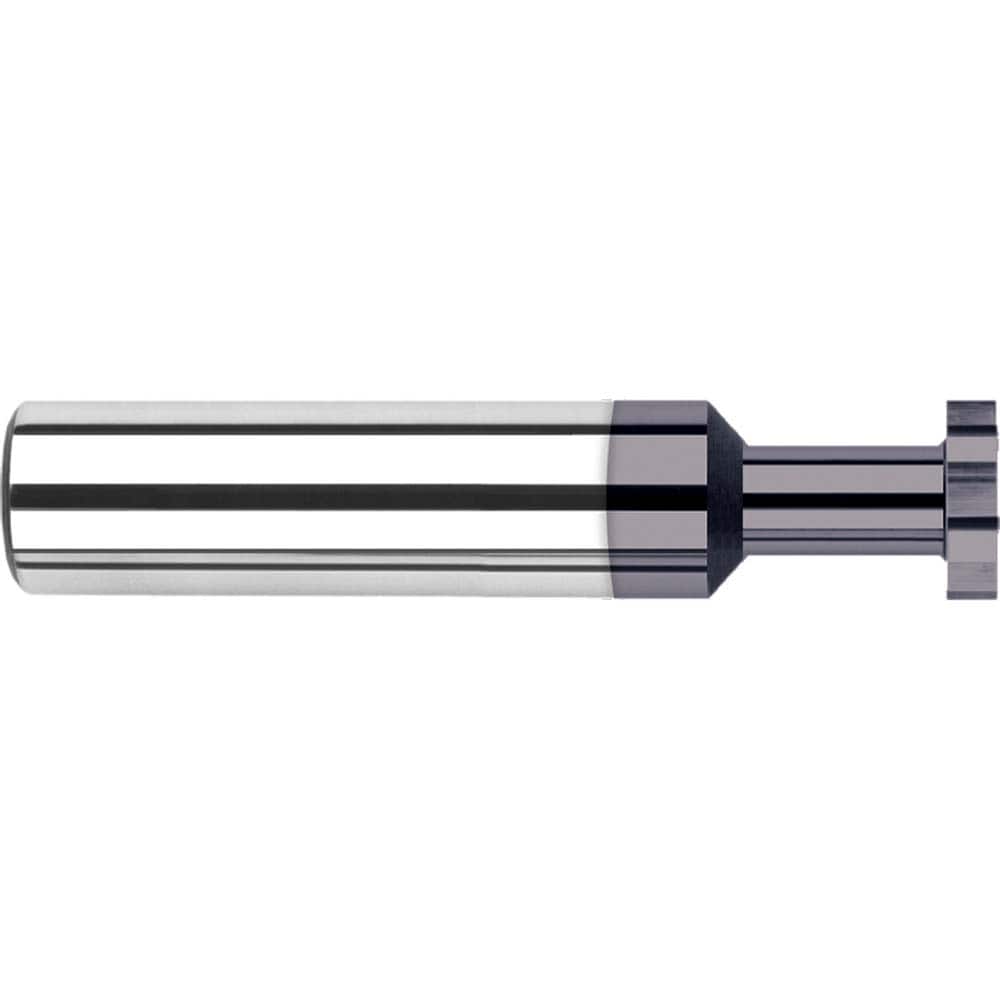

Harvey Tool - ANSI 202 (Old Std # 201) 1/4" Cut Diam, 1/16" Cut Width, 1/4" Shank, Straight-Tooth Woodruff Keyseat Cutter
Item #: 36448884
Brand: Harvey Tool
Model #: 986162-C3
Product Specifications
| Connection Type | Shank |
| Old Standard Number | 201 |
| American Standard Number (ANSI) | 202 |
| Cutting Diameter (Inch) | 1/4 |
| Cutting Diameter (Decimal Inch) | 0.2500 |
| Cutting Width (Inch) | 1/16 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Tooth Configuration | Straight |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Number of Teeth | 6 |
