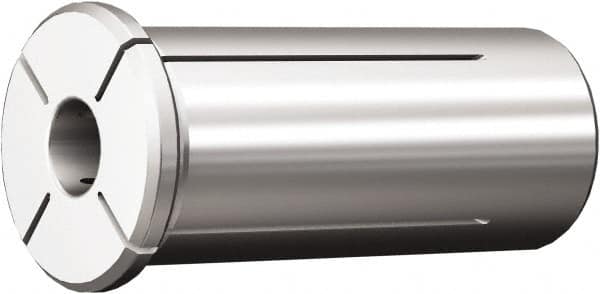

Sandvik Coromant - 16mm ID x 25mm OD, 1.1811" Head Diam, Sealed Hydraulic Chuck Sleeve - Steel, 2.2047" Length Under Head, Through Coolant
Item #: 36449825
Brand: Sandvik Coromant
Model #: 5760366
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (mm) | 16.00 |
| Inside Diameter (Decimal Inch) | 0.6299 |
| Outside Diameter (mm) | 25.00 |
| Outside Diameter (Decimal Inch) | 0.9843 |
| Head Diameter (mm) | 30.00 |
| Head Diameter (Decimal Inch) | 1.1811 |
| Through Coolant | Yes |
| Style | Sealed |
| Material | Steel |
| Length Under Head (mm) | 56.00 |
| Length Under Head (Decimal Inch) | 2.2047 |
| PSI | 80 |
| PSC Code | 5136 |
