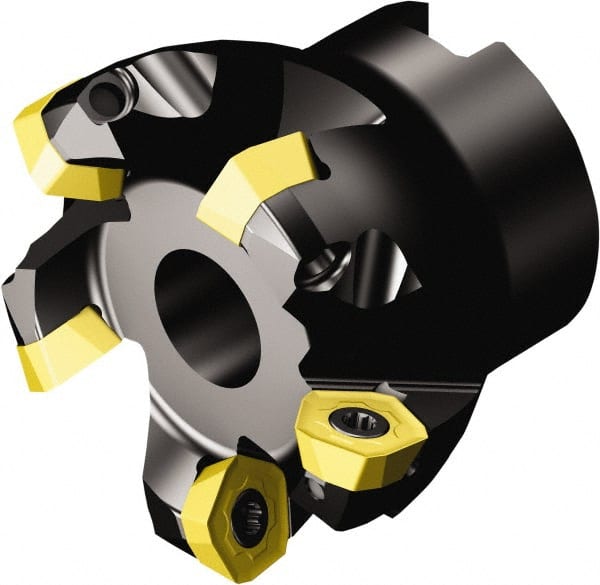

Sandvik Coromant - 4 Inserts, 36.1mm Cut Diam, 3/4" Arbor Diam, 2mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 19° Lead Angle, 1-3/4" High, 419R-1405 Insert Compatibility, Through Coolant, Series CoroMill 419
Item #: 36481562
Brand: Sandvik Coromant
Model #: 6289908
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 36.10 |
| Cutting Diameter (Decimal Inch) | 1.4213 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 19 |
| Overall Height (mm) | 44.45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | 419R-1405 |
| Series | CoroMill 419 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | A419 |
| Number of Flutes | 4 |
| Rake | Positive (Axial) |
| Hub Diameter (mm) | 19.05 |
| Hub Diameter (Decimal Inch) | 0.7500 |
| Hub Diameter (Inch) | 3/4 |
| Keyway Width (mm) | 8.15 |
| Keyway Width (Decimal Inch) | 0.3209 |
| Maximum Body Diameter (Decimal Inch) | 1.4213 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 17300 |
| Pitch | Close |
| Cutting Edge Length (Decimal Inch) | 0.0787 |
| ISO Number | A419-051R19-14M |
| Complete Insert Compatibility | 419R-1405 |
| Toolholder Material | Steel |
