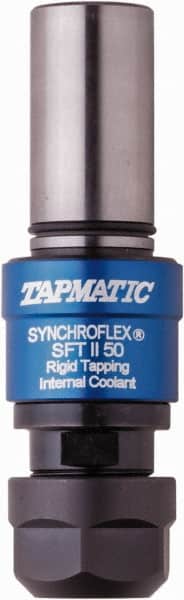

Tapmatic - 63/64" Straight Shank Diam Rigid Tapping Adapter - #8 to 1/2" Tap Capacity, 2.7165" Projection, Through Coolant
Item #: 36593028
Brand: Tapmatic
Model #: 41502520
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (Inch) | 63/64 |
| Minimum Tap Capacity (Decimal Inch) | 0.1772 |
| Minimum Tap Capacity (mm) | M4.5 |
| Minimum Tap Capacity (Inch) | #8 |
| Maximum Tap Capacity (Inch) | 1/2 |
| Maximum Tap Capacity (mm) | M12 |
| Projection (Decimal Inch) | 2.7165 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 3.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.1181 |
| Maximum Collet Capacity (Decimal Inch) | 0.3543 |
| Maximum Collet Capacity (mm) | 9.00 |
| Collet System | ER Tap |
| Collet Series | ER20 |
| Nose Diameter (mm) | 34.00 |
| Nose Diameter (Decimal Inch) | 1.3385 |
| Tension (mm) | 0.51 |
| Compression (Decimal Inch) | 0.0200 |
| Compression (mm) | 0.51 |
| Overall Length (mm) | 69.00 |
| Overall Length (Decimal Inch) | 2.7165 |
| Through Coolant | Yes |
