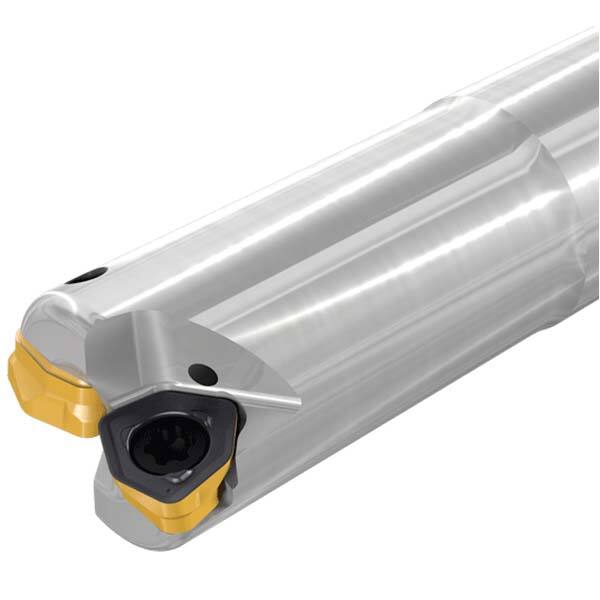

Iscar - Indexable High-Feed End Mills; Cutting Diameter (mm): 7.60 ; Maximum Depth of Cut (mm): 0.60 ; Shank Type: Cylindrical ; Shank Diameter (mm): 12.00 ; Number of Cutter Inserts: 3 ; Insert Style: FFT3
Item #: 36641348
Brand: Iscar
Model #: 3343673
Product Specifications
Indexable High-Feed End Mills; Cutting Diameter (mm): 7.60 ; Maximum Depth of Cut (mm): 0.60 ; Shank Type: Cylindrical ; Shank Diameter (mm): 12.00 ; Number of Cutter Inserts: 3 ; Insert Style: FFT3
| Cutting Diameter (mm) | 7.60 |
| Maximum Depth of Cut (mm) | 0.60 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 12.00 |
| Number of Cutter Inserts | 3 |
| Insert Style | FFT3 |
| Toolholder Style | FFT3 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 3 |
| Through Coolant | Coolant Through |
| Maximum Cutting Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 120.00 |
| Toolholder Material | Steel |
| Head Length (mm) | 25.00 |
