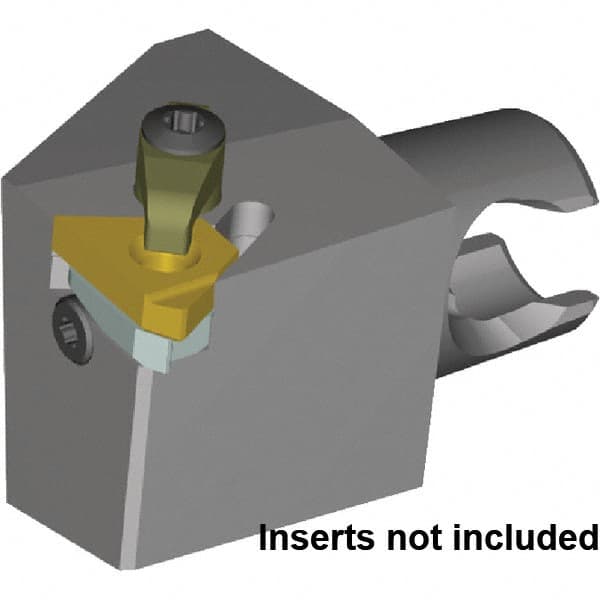

Kennametal - Insert Style LT16ER, 25mm Head Length, Left Hand Cut, External Modular Threading Cutting Unit Head - System Size KM20, 17mm Center to Cutting Edge, Series LT Threading
Item #: 36650885
Brand: Kennametal
Model #: 3482965
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM20 |
| Series Name | LT Threading |
| Thread Type | External |
| Cutting Direction | Left Hand |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Head Length/Projection (mm) | 25.00 |
| Head Length/Projection (Decimal Inch) | 0.9843 |
| Insert Style | LT16ER |
| Insert Holding Method | Clamp |
| Toolholder Material | Steel |
| Minimum Hole Diameter (mm) | 0.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Hole Depth (mm) | 9.52 |
| Maximum Hole Depth (Decimal Inch) | 0.3748 |
| Radial Rake Angle | -10.000 |
