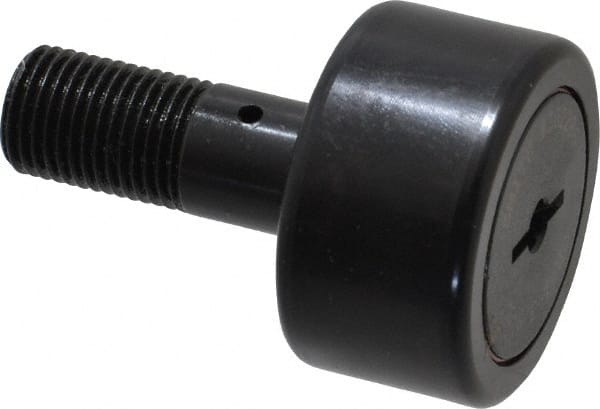

Accurate Bushing - 1-3/8" Roller Diam x 3/4" Width, 1/2" Stud Diam x 1-1/4" Length, Stud Cam Follower - Steel, 5/8" Thread Length, 1/2-20 Thread, 2" OAL, 4,470 Lb Dynamic Cap, 4,300 Lb Static Cap
Item #: 36670610
Brand: Accurate Bushing
Model #: CR-1-3/8-X
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Stud Cam Follower |
| Roller Diameter (Inch) | 1-3/8 |
| Roller Width (Decimal Inch) | 0.7500 |
| Stud Diameter (Decimal Inch) | 0.5000 |
| Dynamic Load Capacity (Lb.) | 4470 |
| Static Load Capacity (Pounds) | 4300.00 |
| Length (Decimal Inch) | 2.000 |
| Thread Size | 1/2-20 |
| Material | Steel |
| Stud Length (Decimal Inch) | 1.2500 |
| Stud Length (Inch) | 1-1/4 |
| Thread Length (Inch) | 5/8 |
