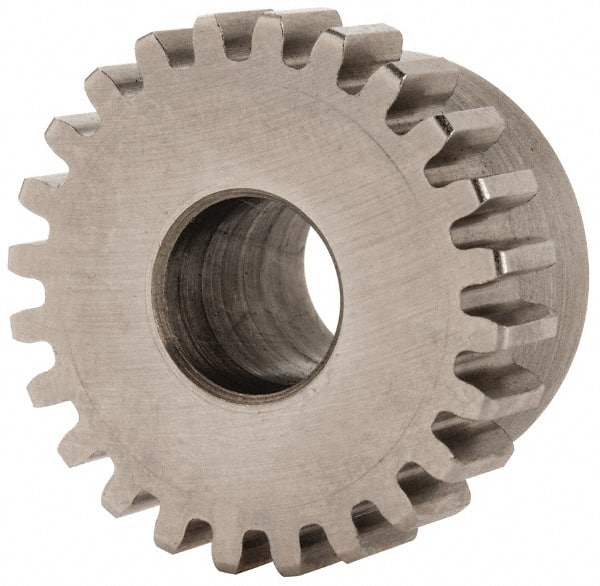

Boston Gear - 24 Pitch, 1" Pitch Diam, 24 Tooth Spur Gear - 1/4" Face Width, 3/8" Bore Diam, 0.87" Hub Diam, 14.5° Pressure Angle, Steel
Item #: 36681989
Brand: Boston Gear
Model #: H2424
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spur Gear |
| Number of Teeth | 24 |
| Hub Diameter (Decimal Inch) | 0.8700 |
| Pitch Diameter (Decimal Inch) | 1.0000 |
| Bore Diameter (Decimal Inch) | 0.3750 |
| Material | Steel |
| Face Width (Decimal Inch) | 0.2500 |
| Pressure Angle | 14.5 |
| PSC Code | 3020 |
