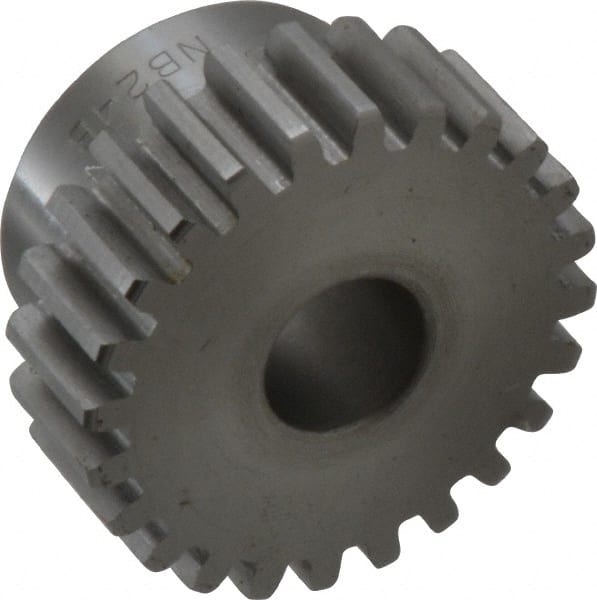

Boston Gear - 16 Pitch, 1-1/2" Pitch Diam, 24 Tooth Spur Gear - 1/2" Face Width, 1/2" Bore Diam, 1.2" Hub Diam, 14.5° Pressure Angle, Steel
Item #: 36682102
Brand: Boston Gear
Model #: NB24B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spur Gear |
| Number of Teeth | 24 |
| Hub Diameter (Decimal Inch) | 1.2000 |
| Pitch Diameter (Decimal Inch) | 1.5000 |
| Bore Diameter (Decimal Inch) | 0.5000 |
| Material | Steel |
| Face Width (Decimal Inch) | 0.5000 |
| Pressure Angle | 14.5 |
| PSC Code | 3020 |
