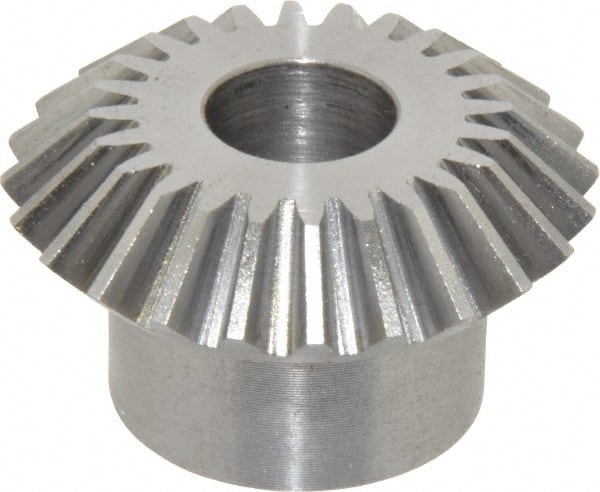

Boston Gear - 16 Pitch, 1-1/2" Pitch Diam, 24 Tooth Miter Gear - 0.32" Face Width, 1/2" Bore Diam, 1" Hub Diam, 20° Pressure Angle, Steel
Item #: 36682730
Brand: Boston Gear
Model #: L112Y
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Miter Gear |
| Number of Teeth | 24 |
| Hub Diameter (Decimal Inch) | 1.0000 |
| Pitch Diameter (Decimal Inch) | 1.5000 |
| Bore Diameter (Inch) | 1/2 |
| Material | Steel |
| Face Width (Decimal Inch) | 0.3200 |
| Pressure Angle | 20 |
| PSC Code | 3020 |
