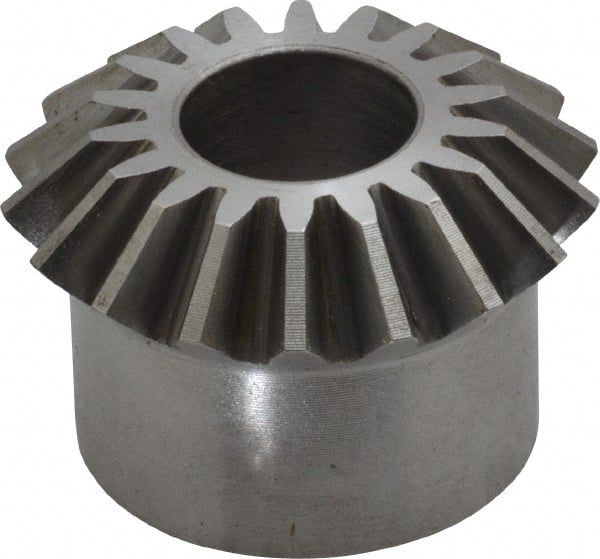

Boston Gear - 12 Pitch, 1-1/2" Pitch Diam, 18 Tooth Miter Gear - 0.33" Face Width, 5/8" Bore Diam, 1-1/4" Hub Diam, 20° Pressure Angle, Steel
Item #: 36682789
Brand: Boston Gear
Model #: L102Y
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Miter Gear |
| Number of Teeth | 18 |
| Hub Diameter (Decimal Inch) | 1.2500 |
| Pitch Diameter (Decimal Inch) | 1.5000 |
| Bore Diameter (Inch) | 5/8 |
| Material | Steel |
| Face Width (Decimal Inch) | 0.3300 |
| Pressure Angle | 20 |
| PSC Code | 3020 |
