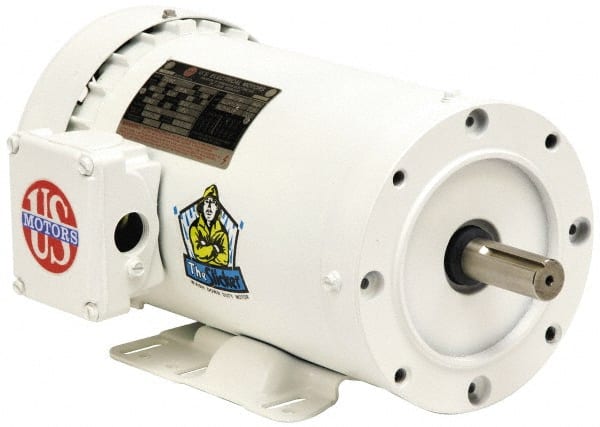

US Motors - 3 hp, Totally Enclosed Fan Cooled, No Thermal Protection, 3,450 RPM, 208-230/460 Volt, 60 Hz, Polyphase Motor - Size 145TC Frame, C-Face Mount, 1 Speed, Ball Bearings, 8.8-7.3/3.6 Full Load Amps, F Class Insulation
Item #: 36868644
Brand: US Motors
Model #: WD3E1A14C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Polyphase |
| Type of Enclosure | Totally Enclosed Fan Cooled |
| Horsepower | 3 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3450 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 145TC |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 8.8-7.3/3.6 |
| Insulation Class | F |
| Service Factor Rating | 1.15 |
| PSC Code | 6105 |
