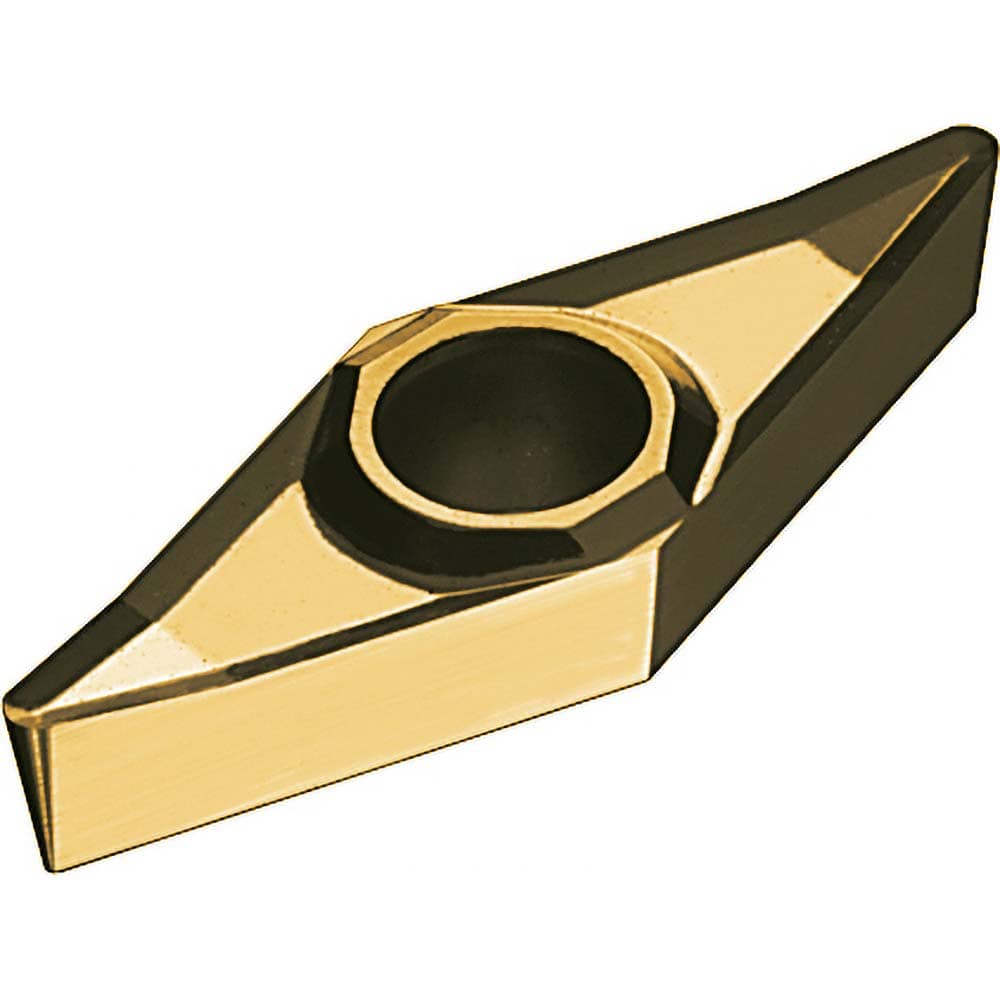

Turning Insert: VCGT220.5FN-ALU AT20, Carbide

Item #: 15587397
Brand: Arno
Model #: 28262

Product Specifications

ANSI Insert Code VCGT220.5

ISO Insert Code VCGT110302

Relief Angle 7

Insert Style VCGT

Corner Radius (mm) 0.20

Corner Radius (Inch) 1/128

Corner Radius (Decimal Inch) 0.0079

Included Angle 35

Manufacturer Grade AT20

Coating/Finish PVD

Wiper Edge No

Insert Hand Neutral

Insert Thickness (Inch) 1/8

Insert Thickness 3.18

Insert Thickness (Decimal Inch) 0.1252

Series VCGT

Inscribed Circle (Decimal Inch) 0.2500

Inscribed Circle (Inch) 1/4

Inscribed Circle (mm) 6.35

Insert Material Carbide

Insert Shape V - Diamond (Rhombic) 35-Deg

Side Clearance Positive

Number Of Cutting Edges 2

Insert Shape Code V

Hole Diameter (Decimal Inch) 0.1102

Maximum Depth of Cut (mm) 2.00

Maximum Depth of Cut (Fractional Inch) 5/64

Maximum Depth of Cut (Decimal Inch) 0.0787

Insert Holding Method Screw

Width (Inch) 1/4

Clearance Code C

Tolerance Code G

Coating Process PVD

Rake Positive

Insert Length (Decimal Inch) 0.8741

Insert Length (mm) 11.10

Primary Workpiece Material Non-Ferrous Metal

Primary Workpiece Material Code N

Secondary Workpiece Material Stainless Steel; Cast Iron; Superalloys & Titanium; Steel

Secondary Workpiece Material Code P; S; K; M

Iso Code VCGT 110302FN-ALU

Standards ISO; ANSI

Manufacturers Catalog Number 28262

Material Grade N25; N10

Coating Classification PVD

Chip Breaker ALU

Cutting Edge Style Sharp

Industry Standard Number VCGT220.5FN-ALU

Width (Decimal Inch - 4 Decimals) 0.2500

Width (mm - 2 Decimals) 6.35

Multi-Use Tool Yes

Full Radius No

Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring

ANSI Size Code 220.5

ISO Size Code 110302

UNSPSC Code 23242105

Insert Size Code 220.5
