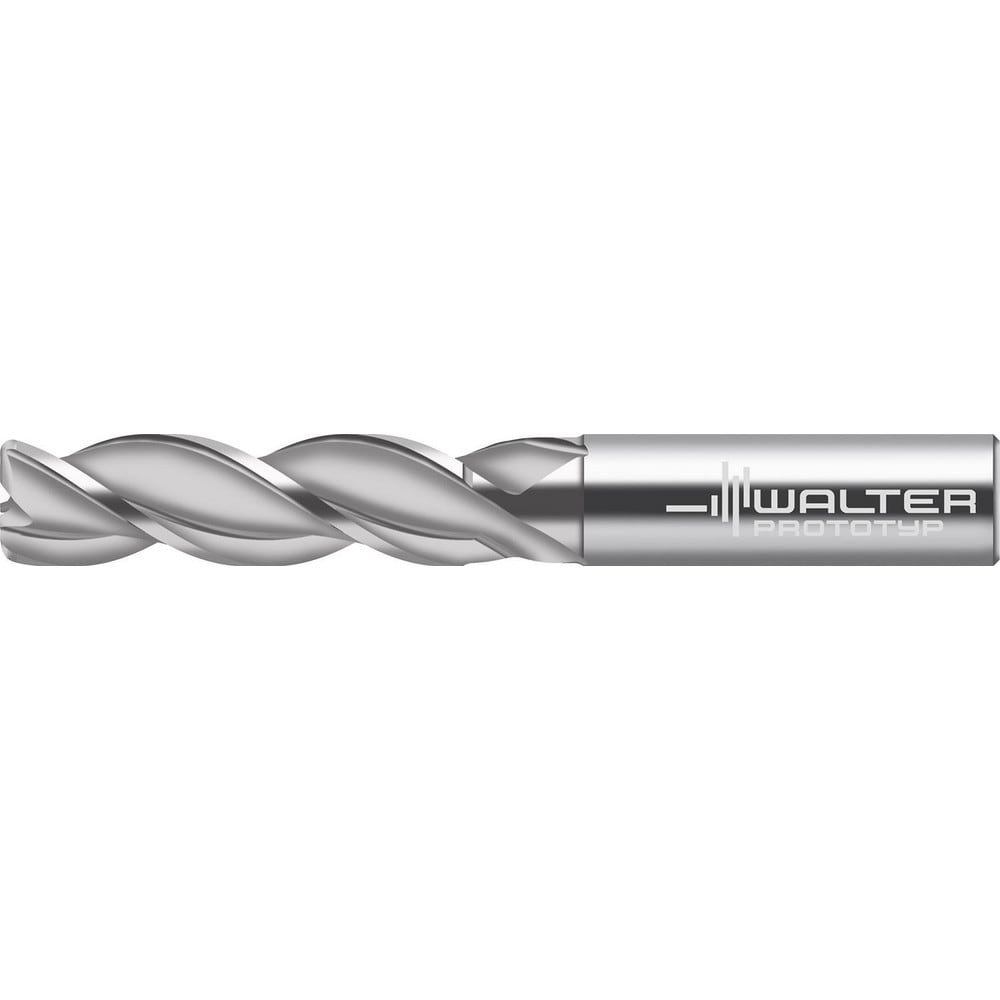

Corner Radius End Mill: 16.00 mm Dia, 56.0000 mm LOC, 35.00 deg Helix, Corner Radius End, Series MC166
Item #: 51378180
Brand: Walter-Prototyp
Model #: 8033552
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6299 |
| Mill Diameter (mm) | 16.00 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 56.0000 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Uncoated |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0787 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 2 |
| Overall Length (mm) | 121.0000 |
| Overall Length (Decimal Inch) | 4.7638 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2047 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.0000 |
| Neck Diameter (mm) | 15.200 |
| Neck Diameter (Decimal Inch) | 0.5984 |
| UNSPSC Code | 27112803 |
| Series | MC166 |
