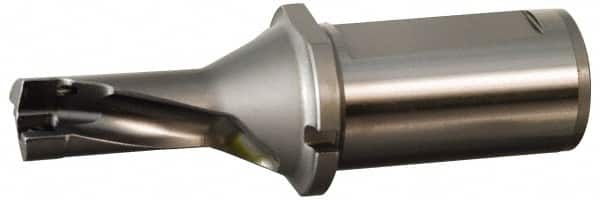

Kennametal - 84mm Max Drill Depth, 4xD, 21mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 36919892
Brand: Kennametal
Model #: 2457744
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFR |
| Drill Diameter (mm) | 21.00 |
| Drill Diameter (Decimal Inch) | 0.8268 |
| Maximum Drill Depth (mm) | 84.00 |
| Maximum Drill Depth (Decimal Inch) | 3.3071 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 10.76x7.38x3.79 |
| Insert Size (Decimal Inch) | 0.4236x0.2906x0.1492 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Diameter (mm) | 22.00 |
| Overall Length/Projection (mm) | 171.00 |
| Overall Length/Projection (Decimal Inch) | 6.7323 |
| Insert Compatibility | DFR 040304 |
| Body Length (Decimal Inch) | 4.4488 |
| Body Length (mm) | 113.00 |
| Shank Length (mm) | 58.00 |
| Series | Drill-Fix |
