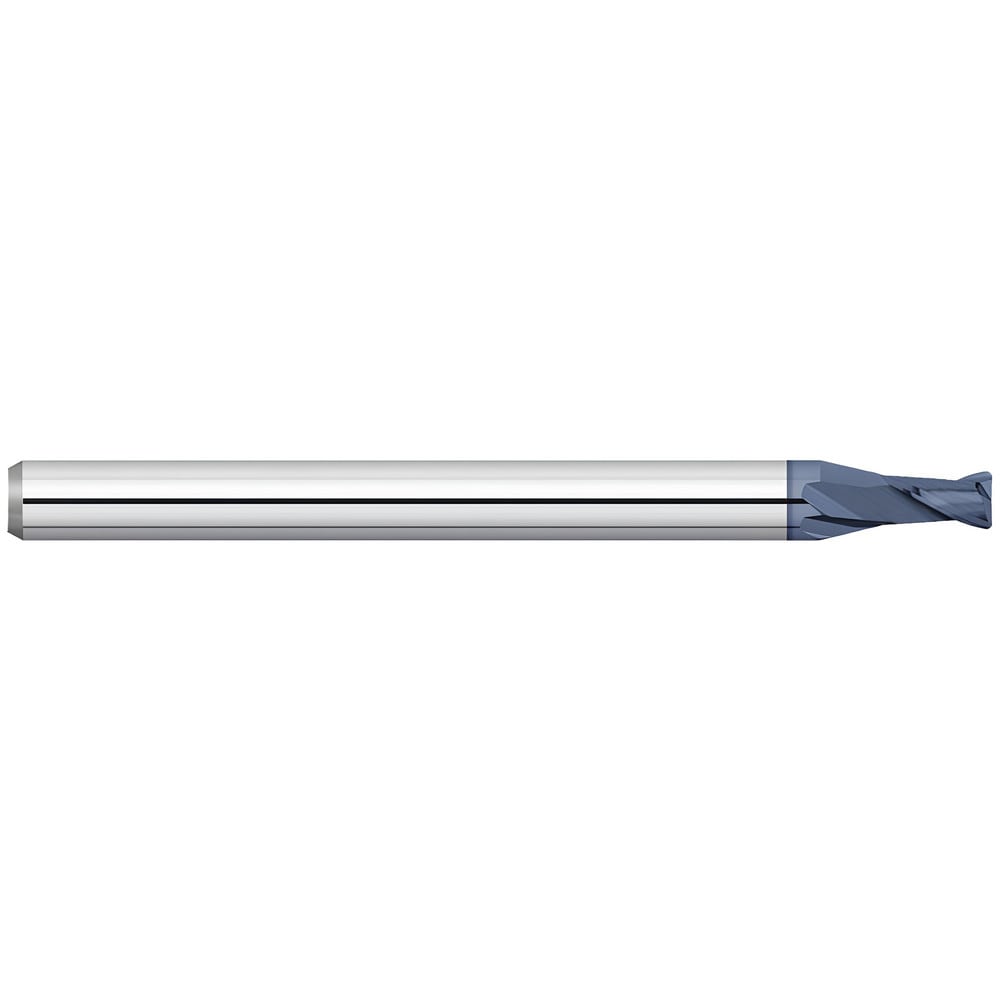

Corner Radius End Mill: 5/64" Dia, 0.117" LOC, 0.0100" Radius, 2 Flute, Solid Carbide
Item #: 78811189
Brand: Titan USA
Model #: TC50360
Product Specifications
| Mill Diameter (Inch) | 5/64 |
| Mill Diameter (Decimal Inch) | 0.0780 |
| Number Of Flutes | 2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Coarse |
| Overall Length (Decimal Inch) | 1.5000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1170 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Reach Length (Decimal Inch) | 0.1170 |
| Corner Radius Tolerance | -0.0002 to 0.0002 in |
| Mill Diameter Tolerance | -0.0005/0.0005 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S; K; M |
| Series | TC |
| Material Application | High-Temperature Alloy; Ferrous Metal; Stainless Steel; Alloy Steel; Inconel; Titanium Alloy |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | Medium |
| Country of Origin | UNITED STATES |
